In the evolving landscape of sustainable material processing, the deep refinement of tire pyrolysis carbon black (CBp) presents a significant technical challenge. The material, a core output from end-of-life tire recycling, demands precision grinding technology to transform it from a coarse, variable-grade substance into a high-value, consistent micro-powder suitable for advanced applications. Shanghai Zenith Machinery Co., Ltd., leveraging decades of engineering expertise, has developed specialized ring roller micro powder mill solutions that are redefining efficiency and quality in this demanding sector.

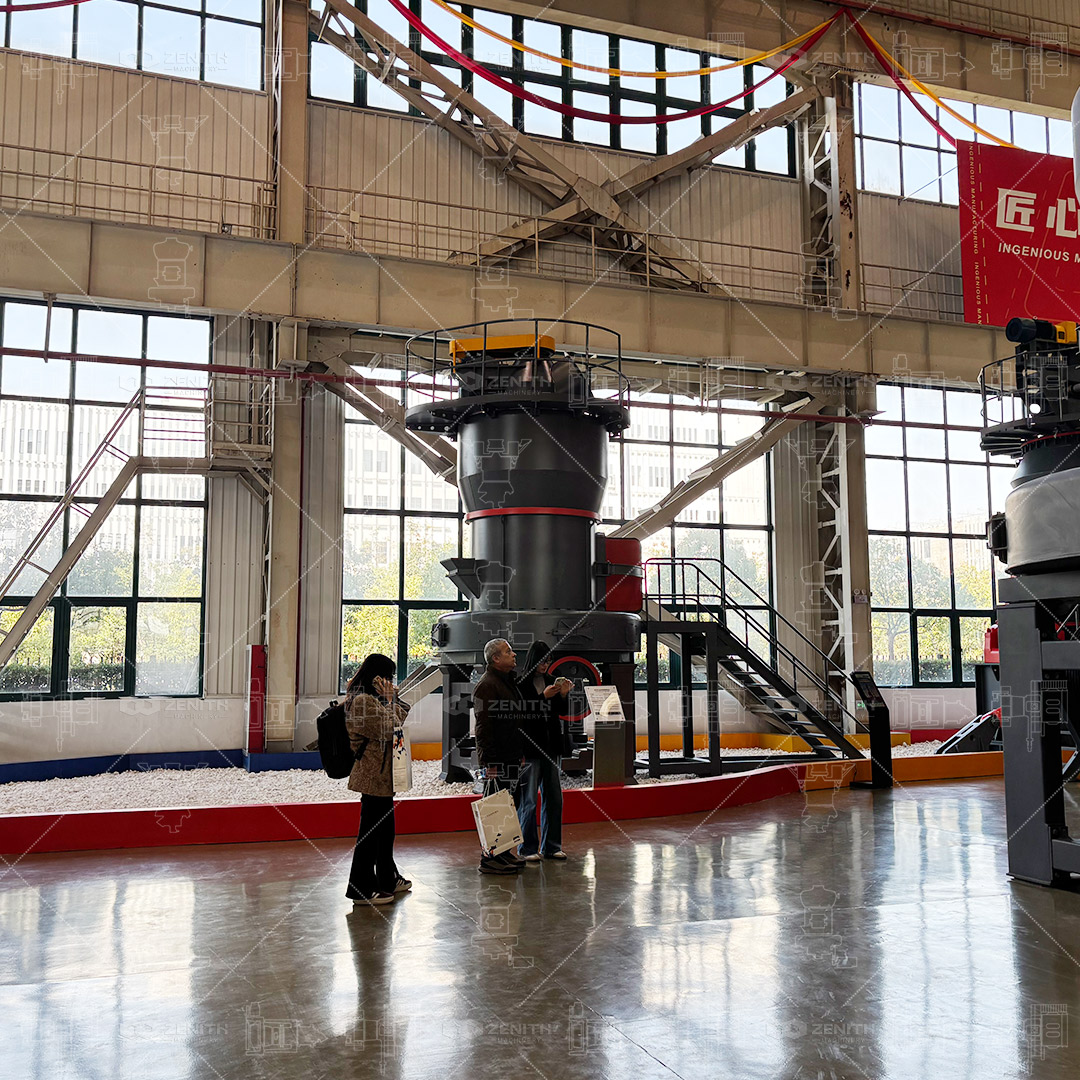

The inherent properties of CBp—variable hardness, residual contaminants, and a need for controlled particle size distribution—render conventional grinding systems inadequate. Zenith's approach centers on its advanced ring roller mill technology, exemplified by the MTW and MTM European Trapezium Mill series, which are engineered for stability and precision in fine powder production. These mills operate on a principle where material is fed into a grinding chamber and subjected to compressive forces between rotating rollers and a stationary ring. The adjustable impeller system allows operators to fine-tune output from 80 to 400 mesh with remarkable consistency, a critical factor for CBp destined for use as a reinforcing filler in rubber compounds, plastics, or coatings.

Energy efficiency is paramount in making CBp processing economically viable. Zenith's ring roller mills demonstrate a groundbreaking advantage, consuming over 60% less energy compared to traditional ball mills of equivalent output. This is achieved through an optimized grinding geometry and a high-efficiency impeller fan that boosts induced air efficiency to 85%. The system operates under a closed-circuit, negative-pressure design, which not only minimizes dust emissions—meeting stringent environmental standards like CE and CU-TR—but also enhances the classification process. Fine particles are carried by the airstream to advanced cyclone and pulse dust collectors, while oversized particles are efficiently returned for regrinding.

For producers targeting the ultra-fine CBp market (400-3250 mesh), where surface activation and maximum reinforcement potential are unlocked, Zenith's LUM Ultrafine Vertical Grinding Mill and XZM Ultrafine Grinding Mill offer unparalleled capability. The LUM mill, integrating German powder separation technology, excels in producing powders in the 325-2500 mesh range with exceptional purity by minimizing iron contamination—a common concern with CBp. Its hydraulic adjustment system allows for quick maintenance of grinding rollers, reducing downtime significantly.

The XZM series, capable of achieving a one-time fineness of D97 < 5 microns, is particularly suited for high-value CBp applications. Its unique structural design eliminates rolling bearings and screws within the grinding chamber, thereby removing critical points of failure and vulnerability to abrasive wear from carbon black. The Variable Frequency Drive (VFD) on the classifier allows for real-time, arbitrary adjustment of fineness directly from the control panel, providing processors with exceptional flexibility to meet diverse customer specifications.

A complete deep processing line often begins with pre-treatment. Zenith's HM Series Hammer Mill is the ideal primary stage equipment, efficiently reducing larger CBp chunks to a uniform 0-3mm coarse powder, creating an optimal feed for the micro-grinding mills. This staged approach—coarse crushing followed by precision ring roller milling—ensures maximum system throughput and protects the fine grinding mills from excessive wear.

Zenith's global experience, with a network spanning over 180 countries, informs every design. The automation integrated into these mills, from intelligent PLC control systems to remote monitoring capabilities, enables CBp processing plants to operate with minimal labor, consistent quality, and low operational cost. The compact, integrated design of mills like the LM Vertical series reduces the plant footprint by up to 50%, further lowering capital investment. For any enterprise serious about transforming tire pyrolysis carbon black from a recycled commodity into a high-performance engineered material, investing in Zenith's dedicated ring roller micro powder technology is a definitive step toward profitability and market leadership.

Frequently Asked Questions (FAQs)

1. What is the typical feed size for the micro powder mills when processing tire pyrolysis carbon black?
   For optimal performance in deep processing, the feed material should be pre-crushed to below 20mm. We recommend using our HM Series Hammer Mill as a primary crusher to achieve a consistent 0-3mm feed for the fine and ultra-fine grinding mills.
2. How does your mill technology control iron contamination in the final CBp powder?
   Our LUM and LM vertical mills are designed with sealed grinding chambers and efficient magnetic separators. The working principle allows iron debris to fall into a dedicated lower cavity for removal, ensuring high-purity output critical for applications in plastics and high-grade rubber.
3. Can one mill produce multiple fineness grades of CBp powder, or do I need different machines?
   Yes, our MTW, MTM, and XZM mills feature adjustable classification systems. By changing impellers or adjusting the classifier rotor speed via VFD, you can produce different fineness grades from 80 mesh to 3250 mesh on a single machine, offering great production flexibility.
4. What are the key advantages of your ring roller mills over traditional ball mills for CBp grinding?
   The key advantages include over 60% lower energy consumption, a much smaller footprint, superior particle size distribution control, lower operating noise, and a fully enclosed system that meets strict environmental dust emission standards.
5. How is the wear resistance of the grinding components for such an abrasive material?
   Vulnerable parts like grinding rollers and rings are manufactured from high-quality, proprietary abrasion-resistant alloys. For extremely abrasive CBp batches, we can provide specially hardened liners to maximize service life and reduce maintenance frequency.
6. What level of automation do your grinding systems offer?
   Our mills come equipped with intelligent control systems enabling fully automatic operation, including remote start/stop, real-time monitoring of pressure and temperature, automatic lubrication, and alarm functions. This allows for labor-free workshop operation and predictive maintenance.
7. Do you provide testing services for our specific CBp sample?
   Yes, we operate a fully equipped testing center. You can send us your tire pyrolysis carbon black sample, and we will conduct comprehensive grinding tests to determine the optimal mill model, configuration, and expected output parameters for your project.
