Project Overview

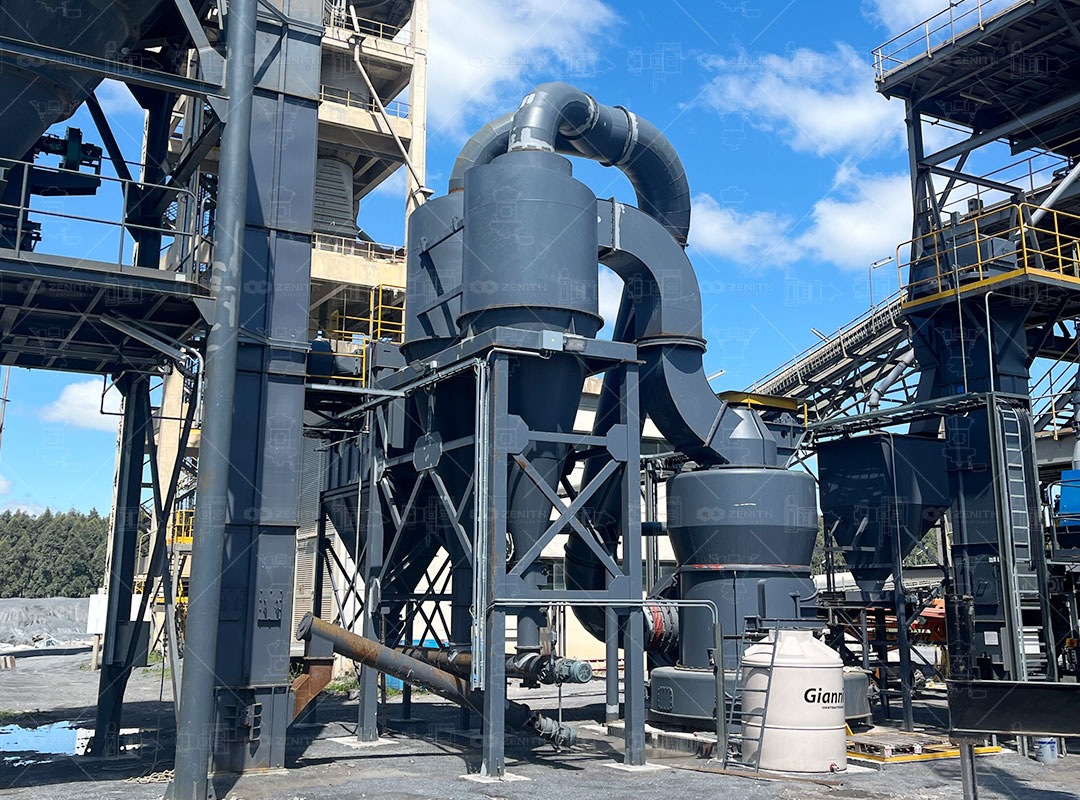

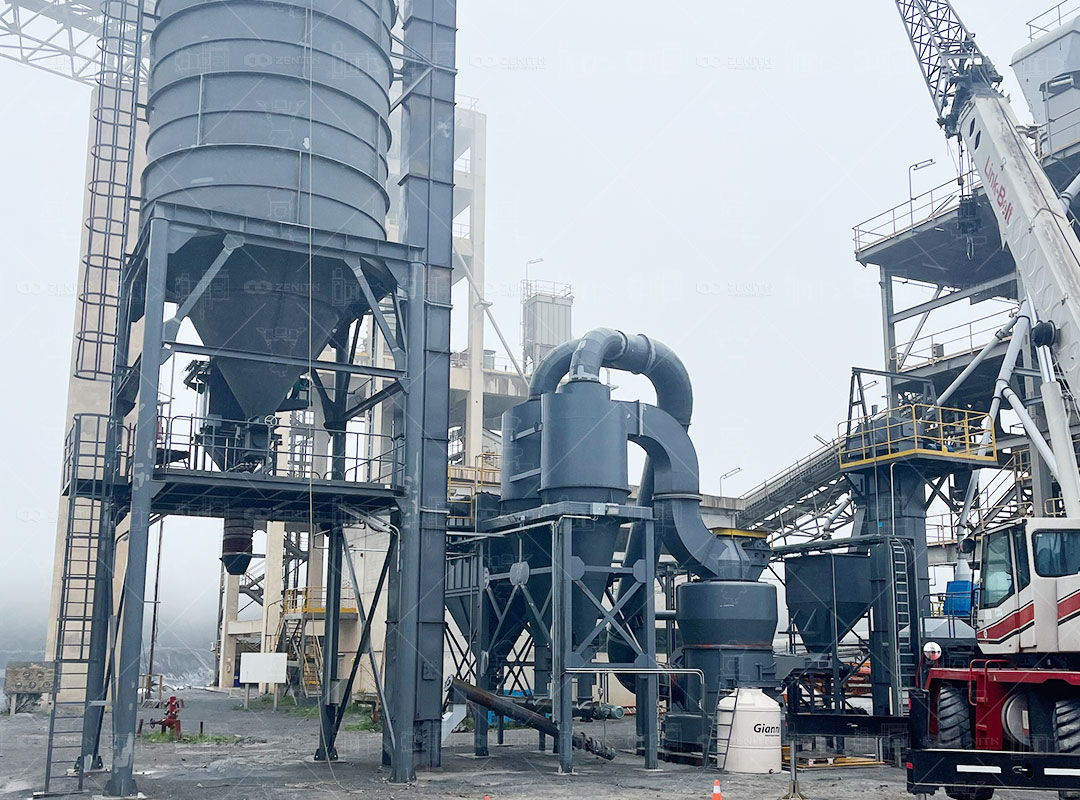

The client is a limestone powder manufacturing company. They required a finished powder fineness of 120-150 mesh (D80). After comparing various options, they chose Zenith Machinery's MTW175G European-style grinding mill. After commissioning, the actual production capacity reached 20-25 tons per hour. The equipment operates stably, is highly efficient and energy-saving, and the client is very satisfied.

Technical advantages of MTW European version grinding mill
1. Mature and Stable: The bevel gear drive provides strong power; the grinding roller linkage pressurization technology increases output at the same power level.

2. Thin Oil Lubrication: The fan, main shaft drive system, and fan drive system all use thin oil lubrication, with an oil change cycle of approximately 4 months, resulting in long oil change intervals and less frequent maintenance.

3. Energy Saving and Environmentally Friendly: Certified for industrial product environmental protection, the air self-circulation system and dust collector work together to meet national environmental protection requirements.

4. Multi-functional and Reliable Technology: Utilizing modern grinding technology and possessing multiple independent patents, it can grind various minerals to meet different particle size requirements.

5. High-Precision Variable Frequency Air Classifier: The new suspended cage air classifier features variable frequency control, allowing for controllable fineness of the finished product; the curved air duct reduces airflow resistance, preventing material blockage and improving efficiency.

6. Scientific Configuration and Reduced Energy Consumption: The resistance-free air inlet volute and the same resistance layout reduce economic losses caused by system energy consumption.
