Selecting the optimal grinding equipment for petroleum coke processing requires careful consideration of multiple factors, with finished product specifications being paramount. When targeting the 17-55 micron range (approximately 300-800 mesh), several grinding technologies emerge as viable candidates, each with distinct advantages for specific operational requirements.

Petroleum coke, a carbonaceous solid derived from oil refinery coker units, presents unique grinding challenges due to its abrasive nature and varying hardness. The 17-55 micron specification is particularly demanding as it represents the transition between fine and ultrafine powder categories, requiring equipment capable of precise particle size control while maintaining operational efficiency.

Primary Equipment Options for 17-55 Micron Petroleum Coke Grinding

MTW European Trapezium Mill

The MTW European Trapezium Mill represents an excellent solution for petroleum coke grinding within the 17-55 micron range. With an output specification of 30-325 mesh (approximately 45-500 microns), this equipment can comfortably achieve the target fineness through its modular impeller adjustment system. The MTW series demonstrates remarkable energy efficiency, consuming approximately 60% less power than traditional ball mills of equivalent capacity.

For petroleum coke applications, the MTW mill's high induced air efficiency (85% versus conventional systems at 62%) provides superior material handling and classification capabilities. The integrated powder selection system ensures consistent product quality, while the positive-negative pressure operation minimizes environmental contamination. With capacities ranging from 3-22 T/H and the ability to handle input sizes up to 35mm, the MTW offers flexibility for various production scenarios.

MTM European Trapezium Mill

The MTM European Trapezium Mill brings three decades of proven performance to petroleum coke grinding applications. Similar to the MTW series, it covers the 80-400 mesh range (approximately 38-180 microns), positioning it ideally for the 17-55 micron target. The MTM's stability and material adaptability make it particularly suitable for processing petroleum coke with varying hardness and composition.

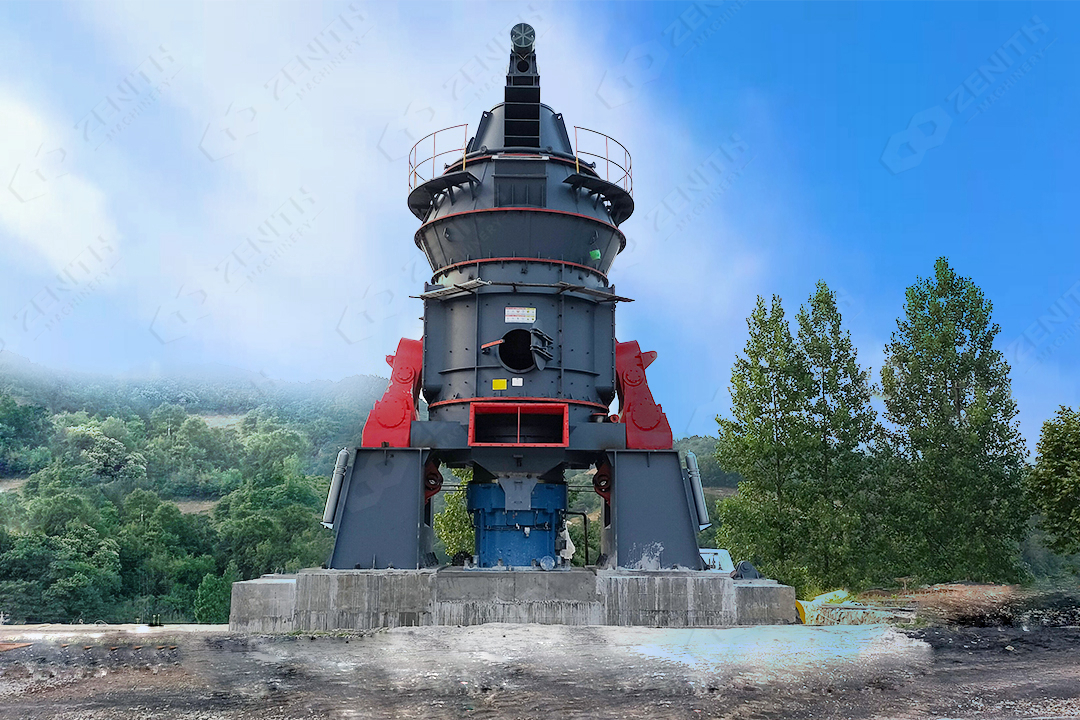

LM Vertical Grinding Mill

For operations requiring continuous 24-hour production, the LM Vertical Grinding Mill offers exceptional reliability and automation capabilities. With an output range of 80-400 mesh, it comfortably handles the 17-55 micron specification while providing significant space savings—approximately 50% less floor area compared to ball mill systems. The vertical roller design ensures stable product quality and effective control over chemical composition and iron content, critical factors for high-value petroleum coke applications.

The LM mill's sealed operation under negative pressure eliminates dust spillage, while its automated control system enables remote operation and monitoring. For large-scale petroleum coke processing plants requiring consistent output quality with minimal operator intervention, the LM Vertical Grinding Mill represents a compelling option.

Raymond Mill (High-pressure Grinding Mill)

The modern Raymond Mill, particularly Zenith's high-pressure roller mill variant, provides another viable pathway to achieving 17-55 micron petroleum coke powder. With output capabilities spanning 10-325 mesh (approximately 45-1700 microns), this equipment offers precise control over final product specifications. The 99% screening efficiency ensures excellent particle size distribution within the target range.

Advanced Solutions for Demanding Applications

XZM Ultrafine Grinding Mill

When processing requirements demand exceptional precision within the 17-55 micron range, the XZM Ultrafine Grinding Mill delivers outstanding performance. Capable of producing powder from 325 mesh to 3000 mesh (approximately 45-5 microns), this equipment offers arbitrary fineness adjustment through its variable frequency drive classifier system. The simple internal structure minimizes downtime and simplifies maintenance, while the energy efficiency (40% higher efficiency and 70% lower energy consumption compared to air-flow mills) provides significant operational cost savings.

For petroleum coke applications where exact particle size distribution directly impacts downstream processes or product performance, the XZM's precision classification capabilities make it an excellent choice.

LUM Ultrafine Vertical Grinding Mill

The LUM Ultrafine Vertical Grinding Mill combines powder grinding, separation, and transportation in a single integrated system. With output capabilities from 325-2500 mesh, it readily achieves the 17-55 micron target while offering energy savings of 30-50% compared to conventional mills. The reversible structure and hydraulic adjustment system facilitate quick maintenance and replacement of wear parts, critical for handling abrasive materials like petroleum coke.

Selection Criteria for Petroleum Coke Grinding

When selecting equipment for petroleum coke grinding to 17-55 micron specifications, several factors warrant careful consideration:

Production Capacity Requirements: Equipment selection should align with both current and anticipated production needs. The MTW and MTM series offer 3-22 T/H capacity, while LM Vertical Mills can handle up to 340 T/H for larger operations.

Energy Efficiency: Grinding operations typically represent significant energy consumption. The trapezium mills' 60% energy savings compared to ball mills and the XZM's 70% reduction versus air-flow mills can substantially impact operational costs.

Space Constraints: Vertical mills and compact trapezium designs offer space-efficient solutions where facility footprint is limited.

Automation Requirements: For operations with limited technical staff or those prioritizing consistent quality, the high automation levels of LM Vertical Mills and Raymond Mills provide significant advantages.

Maintenance Considerations: Equipment with simplified internal structures, such as the XZM series, or reversible/hydraulic systems like the LUM mill, reduce maintenance complexity and downtime.

Conclusion

Selecting the appropriate grinding equipment for petroleum coke processing to 17-55 micron specifications requires balancing multiple operational parameters. For most applications within this range, the MTW European Trapezium Mill and MTM European Trapezium Mill offer an optimal combination of precision, efficiency, and reliability. For operations requiring higher automation or dealing with space constraints, the LM Vertical Grinding Mill presents a compelling alternative. When ultimate precision is paramount, the XZM Ultrafine Grinding Mill delivers exceptional control over particle size distribution.

Zenith's comprehensive range of grinding equipment, backed by international certifications including ISO, CE, and CU-TR, ensures that regardless of specific petroleum coke processing requirements, an optimal solution exists to achieve the target 17-55 micron finished product specifications efficiently and reliably.

Frequently Asked Questions

What is the most energy-efficient equipment for grinding petroleum coke to 17-55 microns?

The MTW and MTM European Trapezium Mills consume approximately 60% less energy than traditional ball mills while achieving the target fineness. For even greater efficiency in ultrafine applications, the XZM Ultrafine Grinding Mill offers 70% energy savings compared to air-flow mills.

Can these grinding systems handle variations in petroleum coke hardness?

Yes, all recommended systems are designed to accommodate variations in material hardness. The MTM series specifically emphasizes material adaptability, while the LM Vertical Mill's robust construction ensures consistent performance across different petroleum coke grades.

How does the equipment prevent contamination of the petroleum coke product?

Our grinding systems employ multiple contamination prevention measures. The LM and LUM mills operate under negative pressure with sealed designs to prevent dust spillage. Important components use high-quality steel, and wear parts incorporate abrasion-resistant materials to minimize metallic contamination.

What level of automation can we expect with these grinding systems?

Automation levels vary by equipment type. The LM Vertical Grinding Mill features comprehensive automatic control with remote operation capabilities. Raymond Mills include intelligent control systems that can enable labor-free operation, while XZM mills offer VFD classifiers for precise fineness adjustment through electronic controls.

How difficult is maintenance for these petroleum coke grinding systems?

Maintenance requirements differ by system. The XZM Ultrafine Mill features a simple internal structure with minimal downtime. The LUM Ultrafine Vertical Mill incorporates reversible structure and hydraulic adjustment for easy wear part replacement. All systems are designed with serviceability as a key consideration.

What safety features are incorporated into these grinding systems?

Safety is integrated throughout our equipment designs. The XZM mill eliminates rolling bearings and screws in the grinding chamber to prevent vulnerability issues. All systems include comprehensive safety protocols, and many operate under negative pressure to contain materials. Pulse dust collectors ensure compliance with environmental standards.

Can the same equipment be used for other materials besides petroleum coke?

Absolutely. These grinding systems are versatile and can process various minerals and industrial materials. The MTW and MTM series handle materials from agriculture to chemicals, while LM Vertical Mills serve cement, GGBS, and coal grinding applications. This versatility provides operational flexibility for facilities processing multiple materials.

What is the typical lifespan of these grinding systems in petroleum coke applications?

With proper maintenance, our grinding systems offer extended operational lifespans. The Hammer Mill features casings with high manganese steel lining for superior abrasion resistance. Ball Mills incorporate detachable, wear-resistant liners. Most systems are engineered for continuous operation in demanding industrial environments.
