In a strategic move to enhance its feed production line, a prominent Iraqi feed mill recently signed a procurement agreement with Shanghai Zenith Machinery Co., Ltd. for a high-performance limestone crusher. The machine, customized to deliver a capacity of 3 tons per hour (3t/h) with a finished product size of 2-4mm, is specifically designed to meet the rigorous demands of the animal feed industry. This purchase not only underscores the growing importance of limestone as a calcium source in feed formulations but also highlights a shift toward more efficient, reliable, and cost-effective processing solutions in the Middle East.

The Strategic Role of Limestone in Animal Feed

Limestone is a critical raw material in feed production, providing essential calcium for bone development, eggshell formation, and overall livestock health. For feed mills, the ability to precisely control particle size—typically between 2mm and 4mm—ensures optimal digestibility and nutrient absorption. Too fine or too coarse a grind can lead to wastage or reduced feed efficiency. The Iraqi feed mill’s decision to invest in a dedicated limestone crusher reflects a deep understanding of these nuances. By sourcing a machine tailored to 2-4mm output, the mill can achieve consistent quality across batches, directly impacting the health and productivity of poultry, cattle, and other livestock.

Why Zenith’s Solution Was Chosen

Shanghai Zenith Machinery, with over 30 years of experience in grinding and crushing equipment, offers a range of solutions that align perfectly with the feed industry’s needs. For this project, the customer evaluated several options but ultimately chose a configuration based on the company’s trusted MTW European Trapezium Mill and Hammer Mill series. The Hammer Mill (HM series) was identified as the ideal primary crusher for coarse limestone reduction to 0-3mm, while the MTW Trapezium Mill provided fine-tuning for precise 2-4mm output. This hybrid approach leverages the strengths of both machines: the Hammer Mill’s high grinding ratio and low investment cost, combined with the MTW mill’s energy efficiency and adjustable fineness.

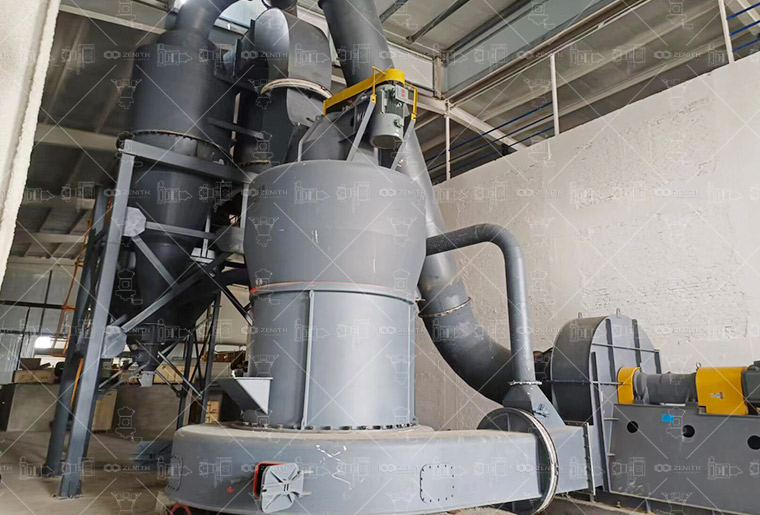

The MTW series, known for its 60% lower energy consumption compared to traditional ball mills, was a key selling point. In a region where electricity costs are a significant operational factor, this efficiency translates to substantial long-term savings. Additionally, the MTW mill’s modular impeller adjustment device allows the mill to change output fineness by simply swapping impellers—a feature that provides flexibility for future product diversification. The machine’s compact design also minimized the required plant footprint, reducing civil engineering costs for the Iraqi customer.

Technical Specifications and Performance

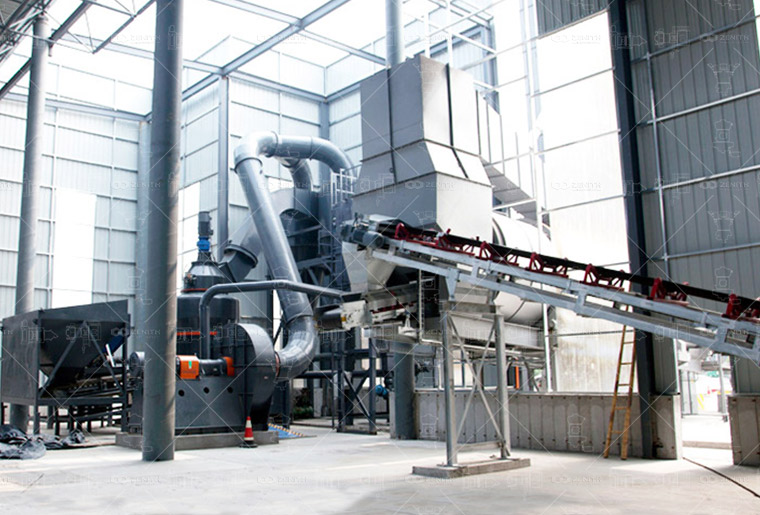

The delivered system comprises a primary crushing stage with a Hammer Mill (Model HM-3) capable of handling input sizes up to 50mm and reducing material to 0-3mm at a capacity of 3-5t/h. This is followed by the MTW European Trapezium Mill (Model MTW110) with a feed size of 0-35mm, producing 3-22t/h of 30-325 mesh powder. By adjusting the classifier speed and airflow, the mill consistently achieves the target 2-4mm granulometry. The entire system operates under negative pressure, equipped with a pulse dust collector that meets Iraqi environmental standards—a growing regulatory requirement in the region.

According to the mill’s production manager, the equipment has been running for three months with over 95% uptime. ‘We are achieving a uniform particle size distribution, with minimal fines below 1mm. This has improved our feed pellet quality and reduced calcium segregation in storage silos,’ he commented. The system’s automatic control features, including variable frequency drives for the feeder and classifier, allow remote monitoring and adjustments, reducing labor costs by an estimated 30%.

Global Standards and Local Support

Zenith’s equipment holds ISO, CE, and CU-TR certifications, giving the Iraqi customer confidence in compliance with international quality and safety norms. The company’s extensive network—spanning 180+ countries with overseas offices in 30+ nations—ensured timely delivery and on-site commissioning. A dedicated service engineer from Zenith’s Middle East office traveled to the plant in Basra to supervise installation, conduct operator training, and provide a two-year warranty on critical components like the grinding roller and classifier impeller. This local support was instrumental in the customer’s decision, as it minimized downtime and technical risks.

Operational Benefits Observed

Since commissioning, the Iraqi feed mill has reported several tangible benefits:

• Consistent Product Quality: The 2-4mm fraction accounts for over 85% of output, with less than 5% oversize material requiring recirculation.
• Energy Savings: Power consumption averages 12 kWh per ton, compared to 20 kWh per ton with the previous ball mill setup—a 40% reduction.
• Reduced Maintenance: The Hammer Mill’s high-manganese steel liners and the MTW mill’s abrasion-resistant components have shown minimal wear after 1,500 operating hours.
• Environmental Compliance: The enclosed system and dust collector keep particulate emissions below 10 mg/Nm³, meeting the Iraqi Ministry of Environment’s limits.

The mill’s management is now considering a second unit for processing other feed additives like diatomaceous earth and zeolite, citing the versatility and reliability of the Zenith system.

Conclusion: A Model for Regional Feed Mills

The Iraqi feed mill’s investment in a Zenith limestone crusher demonstrates a forward-thinking approach to feed production. By prioritizing energy efficiency, product consistency, and regulatory compliance, the mill has set a benchmark for other operators in the region. As the global demand for high-quality animal protein grows, such strategic equipment upgrades will become increasingly vital. With Zenith’s proven technology and after-sales support, this partnership is poised for long-term success.

Frequently Asked Questions (FAQ)

1. What is the typical feed size for the hammer mill in this limestone crushing setup?
The Hammer Mill (HM series) can accept input sizes up to 50mm. However, for optimal efficiency with 3t/h capacity, it is recommended to pre-crush limestone to 30-40mm using a jaw crusher or impact crusher upstream.

2. Can the MTW European Trapezium Mill produce a particle size range other than 2-4mm?
Yes, the MTW mill’s output fineness is adjustable from 30 to 325 mesh (approximately 0.044mm to 0.6mm) by changing the classifier impeller and adjusting the fan speed. The 2-4mm product is achieved by operating at the coarsest end of the spectrum.

3. How does the energy consumption of the Zenith system compare to a traditional ball mill for limestone grinding?
Under ideal conditions, the MTW Trapezium Mill consumes over 60% less energy than a same-grade ball mill. In this specific installation, the combined hammer mill + trapezium mill system shows a 40-50% reduction in kWh per ton compared to the previous ball mill setup.

4. What maintenance is required for the hammer mill and trapezium mill?
For the hammer mill, weekly inspection of hammer tips and liners is recommended; replacement typically every 6-12 months depending on abrasiveness. The trapezium mill requires monthly greasing of bearings and checking of the classifier impeller for wear. Both machines have easy-access doors for quick inspections.

5. Is dust control managed effectively in this system?
Yes, the equipment operates under negative pressure with an integrated pulse-jet dust collector. The captured dust is returned to the system, ensuring no material loss and emissions below 10 mg/Nm³, which meets Iraqi and international environmental standards.

6. Can this system handle other materials besides limestone for feed applications?
Absolutely. The hammer mill and trapezium mill are versatile and can process other feed-grade minerals such as calcium carbonate (already limestone), dolomite, gypsum, and even grains or corn cob grits. The MTW mill is particularly effective for materials with Mohs hardness up to 6.

7. What is the typical delivery lead time and installation period for such an order in Iraq?
Standard manufacturing lead time is 4-6 weeks, with sea freight from Shanghai to Umm Qasr Port taking approximately 20-25 days. On-site installation and commissioning by a Zenith engineer typically takes 7-10 days, including operator training.
