In the rapidly industrializing landscape of Bangladesh, the demand for high-purity, ultra-fine limestone powder is surging. A prominent local enterprise recently made a strategic investment by purchasing a series of XZM Ultrafine Grinding Mills from Shanghai Zenith Machinery Co., Ltd., aiming to process limestone efficiently at a capacity of 5-6 tons per hour while achieving a finished product specification of 1000 mesh (D97). This article delves into why the XZM mill was the ideal choice for this application, explores the technical advantages of Zenith’s equipment portfolio, and outlines the comprehensive support that ensured project success.

Meeting Bangladesh’s Limestone Powder Demand

Bangladesh, with its growing construction, chemical, and paint industries, requires consistent supplies of ultra-fine limestone powder. The 1000 mesh D97 specification—where 97% of particles pass through a 1000 mesh sieve—demands milling equipment capable of extreme precision and stability. The customer’s requirement for a 5-6 t/h throughput further narrowed the search to machines that balance high capacity with ultra-fine output. After evaluating multiple suppliers, they selected Zenith’s XZM Ultrafine Mill, renowned for its ability to produce powder from 325 mesh up to 3250 mesh (D97 < 5 micron) with single classification.

Why XZM Ultrafine Mill Stands Out for Ultra-Fine Limestone

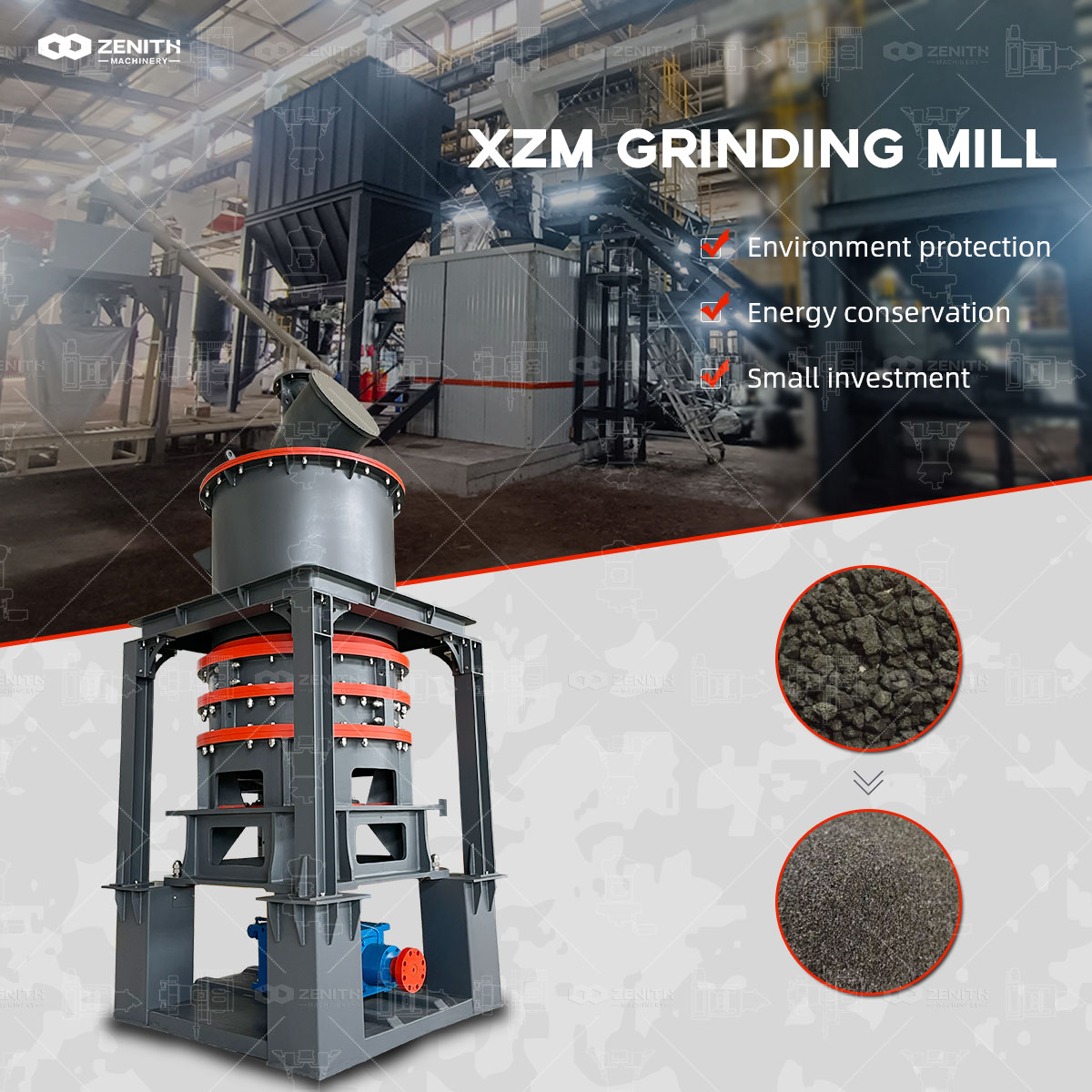

The XZM series mill is a product of advanced engineering, integrating Taiwan’s grinding roller technology and Germany’s powder separation expertise. For this Bangladesh project, the key features that sealed the deal include:

• Arbitrary Fineness Adjustment: The mill can adjust fineness between 325 and 2500 mesh arbitrarily, easily reaching 1000 mesh D97 by simply adjusting the VFD-controlled classifier rotor speed via the electric control panel.
• High Efficiency, Low Energy Consumption: Compared to air-flow mills or stirring mills, the XZM delivers 40% higher efficiency and 70% lower energy consumption under the same power—critical for keeping operational costs down in Bangladesh’s energy-sensitive market.
• Safe & Durable Structure: The grinding chamber contains no rolling bearings or screws, eliminating bearing seal vulnerabilities and the risk of screw loosening. This design ensures minimal downtime and easy maintenance.
• Environmentally Friendly Operation: The system operates under negative pressure, with a pulse dust collector ensuring zero dust spillover, meeting Bangladesh’s increasingly stringent environmental regulations.

Working Principle in Action

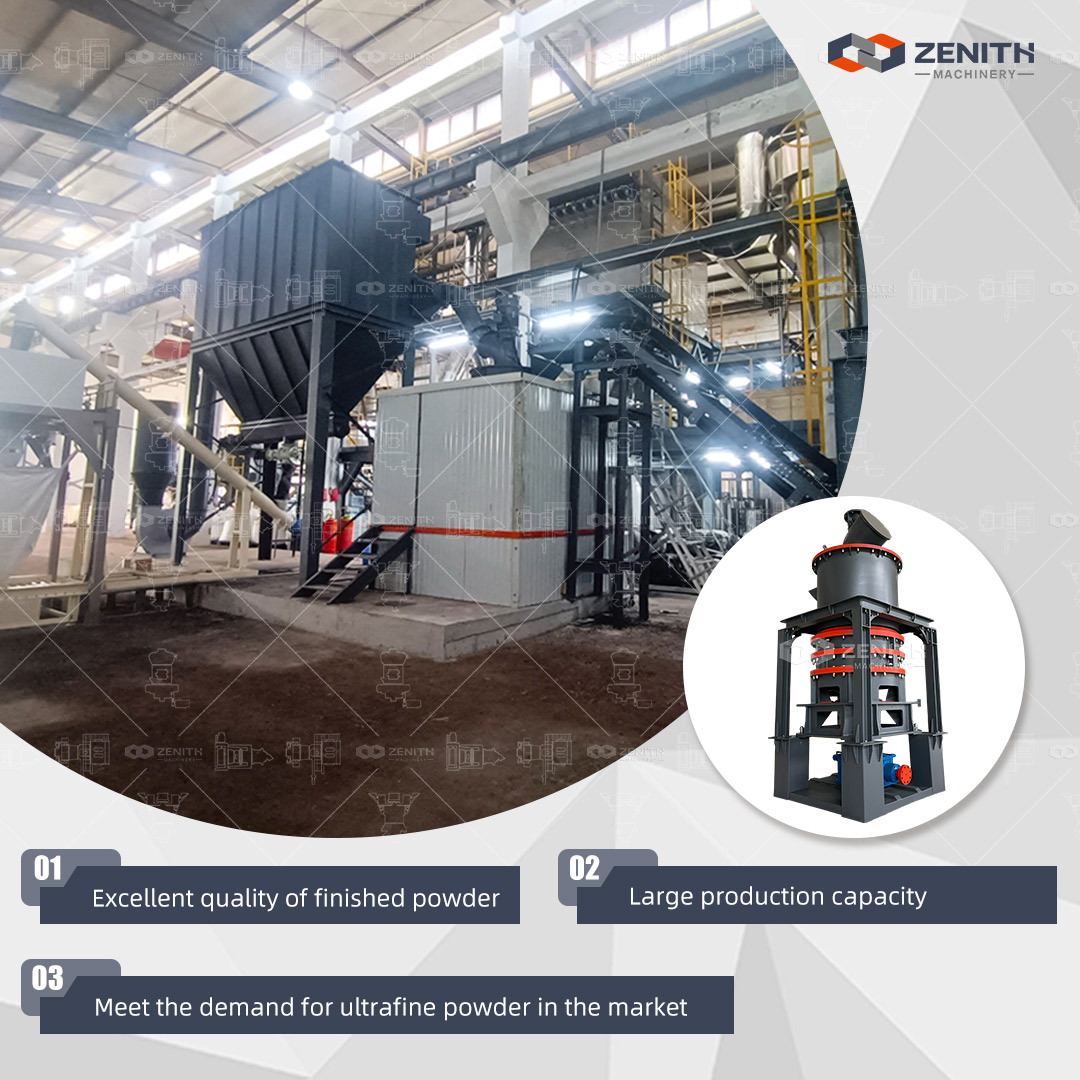

In the plant, crushed limestone (0-20mm) is fed into the XZM main machine via a feeder. The material falls onto a rotating turntable, where grinding rollers crush it under centrifugal force. Airflow carries the ground particles to the classifier; unqualified coarse powder returns for re-grinding, while qualified 1000 mesh powder enters the cyclone collector and pulse dust collector. The entire process runs under negative pressure, ensuring a clean, safe working environment. The customer reported that after commissioning, the mill consistently achieved 5.5 t/h with D97 passing 1000 mesh, exceeding expectations.

Zenith’s Portfolio: A Trusted Partner for Diverse Grinding Needs

Zenith’s comprehensive product line offers solutions for every stage of powder processing, from coarse to micro powder. For this project, the XZM was chosen for its ultra-fine capability, but Zenith’s other mills provide complementary options:

Zenith’s equipment is certified with ISO, CE, and CU-TR, and its global network spans over 180 countries, with more than 30 overseas offices ensuring prompt after-sales service.

Project Implementation and Results

The Bangladesh company collaborated with Zenith’s local engineers for site planning, foundation work, installation, and commissioning. The XZM mill’s compact design minimized plant area, and the variable frequency belt feeder ensured stable material flow. After three months of continuous operation, the mill achieved:

• Average capacity: 5.8 t/h (against the target of 5-6 t/h)
• Product fineness: 1000 mesh D97 consistently verified by laboratory sieving
• Energy consumption: 40% lower than the customer’s previous ball mill system (based on 60% lower than ball mill baseline)
• Zero environmental compliance issues due to the sealed negative-pressure system

The customer has since ordered an additional unit for a second production line, citing reliability and ease of operation as key factors.

FAQ – Frequently Asked Questions

1. What is the typical capacity of an XZM Ultrafine Mill for 1000 mesh limestone?
   For limestone with a feed size of 0-20mm, the XZM can produce 0.5-25 t/h depending on fineness. At 1000 mesh D97, the practical capacity lies in the 5-6 t/h range, as demonstrated in this Bangladesh project.
2. Can the XZM mill handle other materials besides limestone?
   Yes, the XZM series is highly versatile and is widely used for grinding calcite, marble, talc, dolomite, barite, kaolin, wollastonite, gypsum, feldspar, and many other non-metallic minerals with Mohs hardness below 7.
3. What is the power consumption of an XZM mill compared to a ball mill?
   Under ideal conditions, the XZM reduces energy consumption by 70% compared to a stirring mill and 40% compared to an air-flow mill. When compared to a ball mill, the XZM’s integrated system typically saves 50-60% in power for the same output and fineness.
4. How is the fineness of 1000 mesh D97 achieved consistently?
   The classifier is equipped with a Variable Frequency Drive (VFD) that allows infinite adjustment of the classifier rotor speed. By setting the desired speed on the electric control panel, operators can precisely achieve the target fineness, such as 1000 mesh D97, without changing mechanical parts.
5. What safety features does the XZM mill have?
   The grinding chamber contains no rolling bearings or screws, eliminating the risk of seal failure or screw loosening. The system operates under negative pressure, with a pulse dust collector preventing dust leakage, and all electrical components are CE-certified.
6. Does Zenith provide installation and training for buyers in Bangladesh?
   Yes, Zenith has overseas offices and a service network in more than 30 countries, including South Asia. The company offers complete installation supervision, commissioning, and operator training to ensure smooth project execution.
7. What is the maintenance schedule for the XZM mill?
   Routine maintenance includes checking the classifier blades, roller and ring wear, and lubrication of the main bearing every 500-800 hours. The unique structure allows easy access to wear parts, and replacement can be done within a shift with standard tools.

For any company in Bangladesh or elsewhere looking to process limestone or other minerals into ultra-fine powder, the XZM Ultrafine Grinding Mill represents a cost-effective, energy-efficient, and environmentally sound solution. Contact Shanghai Zenith Machinery Co., Ltd. at their website or local office to discuss your specific requirements.
