In the global push for cleaner industrial emissions, flue gas desulfurization (FGD) stands as a critical technology for power plants and steel mills. At the heart of an effective wet or semi-dry FGD system lies a consistent, high-quality supply of finely ground limestone. The efficiency of the entire desulfurization process is intrinsically linked to the particle size distribution, reactivity, and purity of this sorbent agent. This is where advanced grinding technology, specifically engineered for this demanding application, makes all the difference.

Shanghai Zenith Machinery, with its deep expertise in industrial powder processing, has developed grinding solutions that directly address the stringent requirements of modern desulfurization systems. The target fineness for limestone in many FGD applications is precisely within the 200 to 325 mesh range (approximately 75 to 45 microns). Achieving this consistently, at high capacity and with optimal energy efficiency, is the challenge our equipment is designed to overcome.

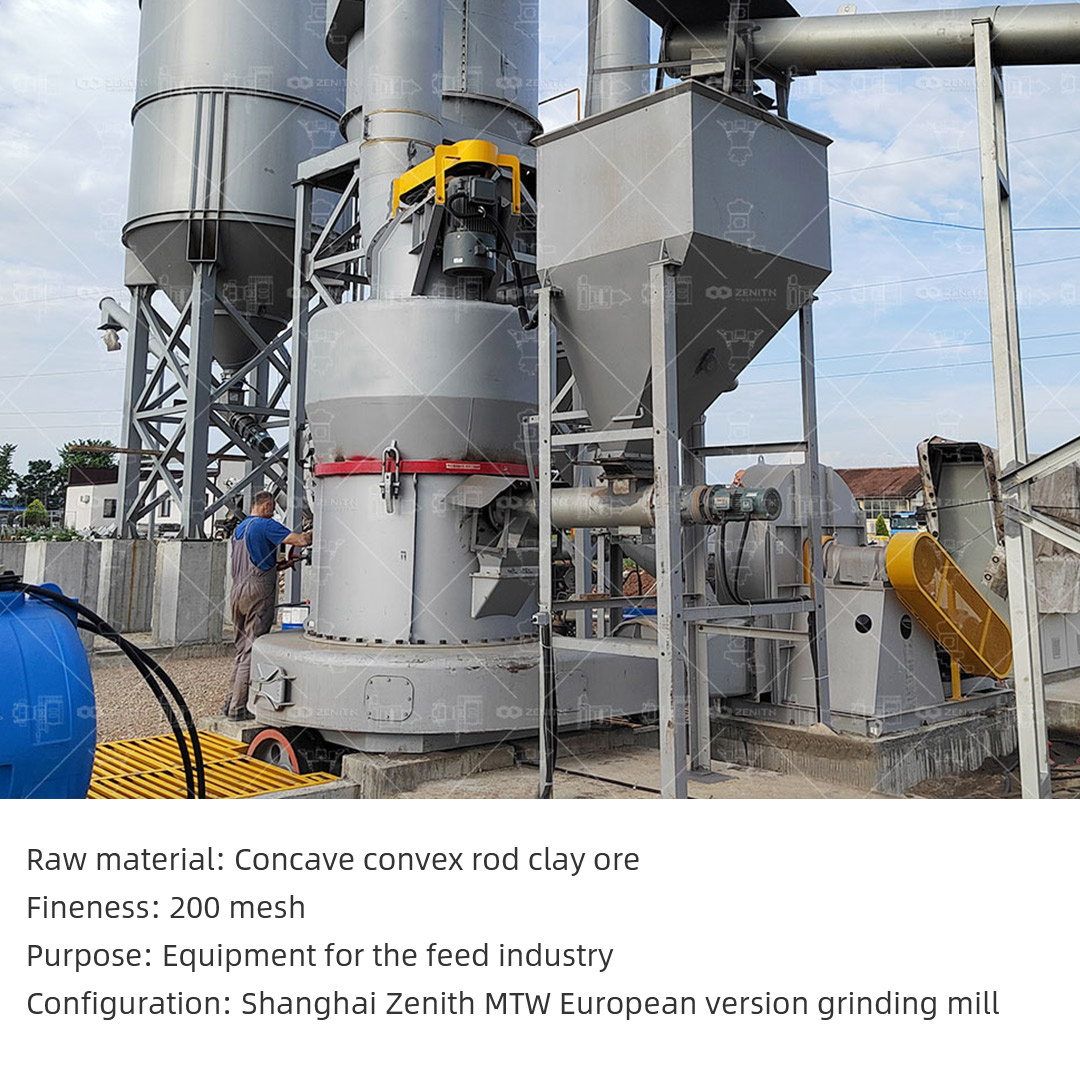

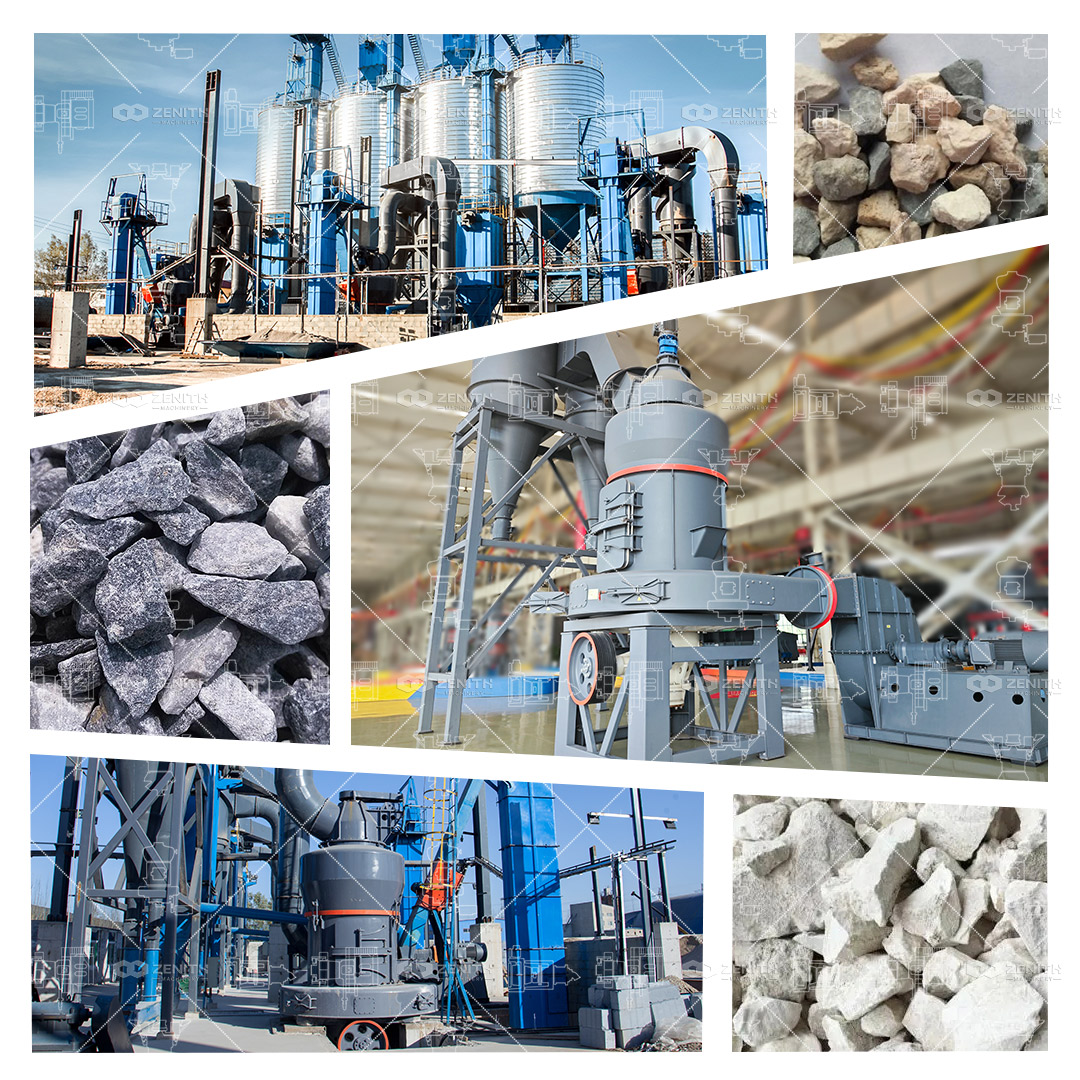

Among our portfolio, the MTW European Trapezium Mill emerges as a particularly adept solution for this task. Engineered for stability and large-capacity fine powder production, it is perfectly suited for producing the 325-mesh limestone powder that is the industry standard for efficient SO2 capture. Its design philosophy centers on delivering maximum output with minimal operational footprint and energy expenditure—key considerations for cost-sensitive industrial operations.

The technical advantages of the MTW mill are transformative for desulfurization agent preparation. Its modular impeller adjustment device allows operators to fine-tune the output fineness with ease, ensuring the product consistently meets the exact 325-mesh specification required for optimal surface area and reaction kinetics in the desulfurization tower. Furthermore, the mill incorporates a high-efficiency impeller fan, which boosts induced air efficiency from 62% to 85%. This not only enhances the internal classifying effect for a sharper particle size cut but also contributes to the system's overall energy savings.

Perhaps the most compelling metric is its energy consumption. Under ideal working conditions, the MTW series demonstrates an energy consumption over 60% lower than that of a traditional ball mill of the same grade. For a power plant running its FGD system continuously, this translates into massive reductions in operating costs and a significantly lower carbon footprint for the grinding process itself. The mill operates as a complete, self-contained system from bulk limestone feed to finished powder collection, requiring less investment in auxiliary structures and foundations.

The working principle ensures a stable, high-quality product. Crushed limestone is fed into the grinding chamber and pulverized by the rollers. The fan-driven airflow carries the powder to the integrated classifier, where particles meeting the 325-mesh fineness are separated as final product via the cyclone collector. Coarse particles are systematically returned for re-grinding. The entire system operates under controlled positive and negative pressure, and is equipped with a pulse dust collector, guaranteeing that the production of this environmental agent is itself an environmentally clean process.

While the MTW mill is ideal for this specific fineness range, Zenith's comprehensive range offers solutions for every stage and requirement. For slightly coarser or finer needs, the MTM European Trapezium Mill offers proven reliability for 80-400 mesh powder. For projects demanding ultra-fine limestone fillers or higher capacities, the LM Vertical Grinding Mill provides exceptional automation and stability for 24/7 operation. For the initial crushing of large limestone feedstock to the 0-35mm size required by the MTW mill, our Hammer Mills or crushers provide efficient pre-processing.

By selecting a Zenith grinding system like the MTW European Trapezium Mill, power and steel plants secure more than just a piece of machinery. They invest in a reliable, efficient, and economical process cornerstone for their environmental compliance strategy, ensuring a steady supply of high-performance desulfurization agent that helps clear the skies.

Frequently Asked Questions (FAQs)

1. Why is 325-mesh fineness so critical for limestone in FGD systems?
   325-mesh (about 45 microns) powder provides the optimal surface area-to-volume ratio. This maximizes the contact and reaction rate between the limestone and sulfur dioxide (SO2) in the flue gas, leading to higher desulfurization efficiency and lower sorbent consumption.
2. How does the MTW Mill's energy consumption compare to a traditional ball mill?
   The MTW European Trapezium Mill is designed to consume over 60% less energy than a ball mill of comparable output grade, significantly reducing the operating costs of the grinding circuit.
3. Can the MTW Mill handle variations in limestone hardness or moisture?
   Yes, the MTW mill features a robust design and stable grinding principle that can adapt to normal variations in material properties. For very high moisture content, pre-drying systems or alternative mill configurations (like LM Vertical Mill) can be considered.
4. What is the typical capacity range of the MTW Mill for producing 325-mesh limestone?
   The MTW series offers a capacity range from 3 to 22 tons per hour (T/H) for fine powder production, with the largest models capable of up to 50 TPH under specific conditions, allowing it to scale to the needs of both medium and large power plants.
5. How is dust control managed during the grinding process?
   The mill system is a closed-circuit design operating under negative pressure. It is equipped with a high-efficiency pulse jet bag dust collector (or cyclone + bag collector) at the exhaust, ensuring no dust spillage and full compliance with industrial environmental standards.
6. Besides limestone, what other materials can the MTW Mill grind for industrial use?
   The MTW mill is versatile and can also produce fine powder from calcite, dolomite, barite, talc, and other non-metallic minerals for applications in agriculture, chemicals, paints, and water treatment.
7. What kind of after-sales support and certification does Zenith provide?
   Zenith equipment holds ISO, EU CE, and CU-TR certifications. With a network covering over 180 countries and offices in more than 30, we provide comprehensive technical support, installation guidance, and spare parts services globally.
