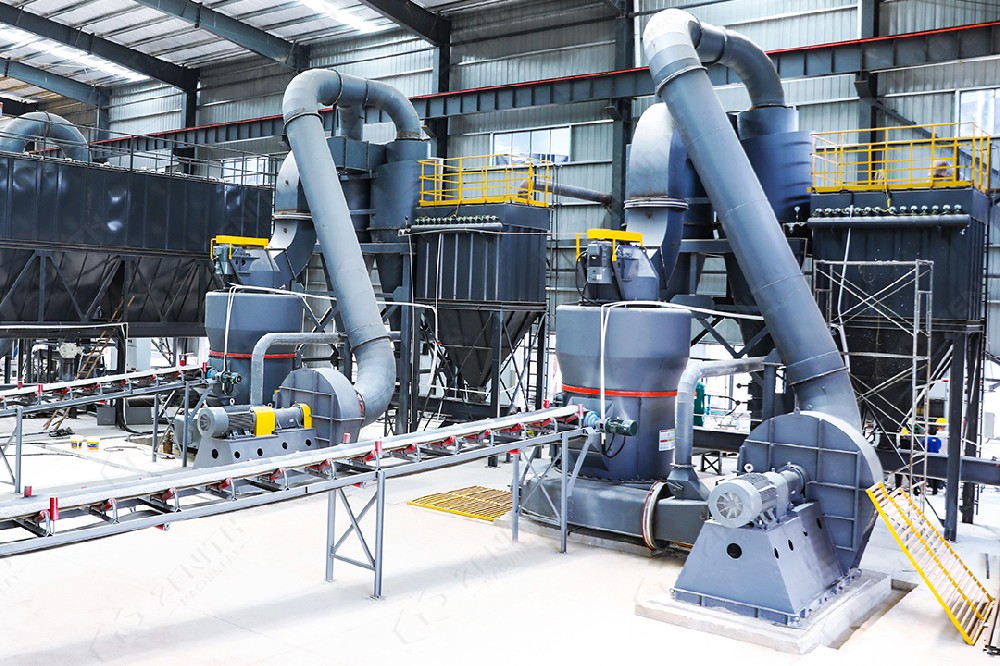

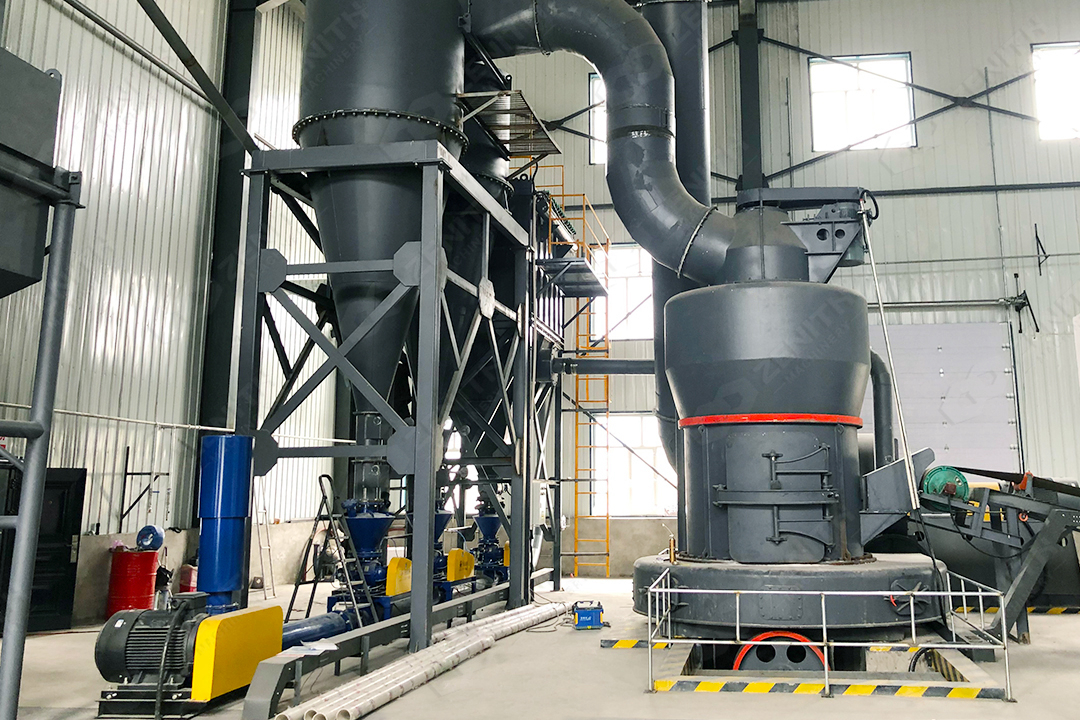

Recommended for aluminum carbon powder production: the MTW Series European-style grinding mill.

1. Product Introduction

Zenith Machinery's MTW Series European-style grinding mill, honed through over 40 years of technological development and incorporating the latest European grinding concepts, has revolutionized the industrial grinding process. The mill boasts numerous independent patents and has passed numerous scientific and technological achievement appraisals since its launch, becoming the optimal replacement for traditional Raymond mills, pendulum mills, and ball mills. It is also the preferred equipment for large-scale mineral production plants.

2. Operating Principle

Qualified crushed material is uniformly and continuously fed into the main mill chamber by a variable frequency belt feeder for grinding. The ground material is then conveyed by a fan airflow into a powder concentrator for classification. The analyzer removes material that does not meet fineness requirements and allows it to be re-ground. Qualified material is then transported through the airflow through a duct into a cyclone collector for separation and collection. The final powder is then discharged through a discharge device. The separated air flows through the return duct at the top of the cyclone collector and into the fan. The system operates under positive and negative pressure conditions. The equipment is equipped with a pulse dust collector and complies with national environmental protection standards.

3. Technical advantages

 (1) Leading technology National patented product, the fourth generation mill has been upgraded and transformed, mature and stable. (2) Not easy to block, high powder selection efficiency The curved arc air duct is used, and the internal outlet direction is conducive to the dispersion of materials and is not easy to block; the new hanging cage powder selection machine is used for variable frequency control, and the finished product fineness is adjustable and controllable, which greatly improves the powder selection efficiency. (3) Advanced transmission and stable operation The bevel gear integral transmission has strong power, high efficiency, large output and low energy consumption. The sunken design has stable operation, low vibration and low noise. (4) Easy maintenance and low operating cost The main shaft drive system and the fan drive system are both lubricated with thin oil, with a long oil change cycle, low maintenance frequency and low operating cost. (5) Economical investment and green environmental protection Small footprint, simple structural layout, strong set-up, low capital construction cost, short construction period and fast capital recovery. The finished product has minimal contamination and high whiteness. The entire system operates under negative pressure, eliminating dust spillage and meeting the latest national environmental protection requirements.

Integrated Comprehensive Solution

We offer a comprehensive, integrated solution encompassing design, supply, construction, and service, ensuring peace of mind and peace of mind!
