In the demanding landscape of modern metallurgy, efficiency and reliability are not just goals—they are imperatives. A leading Indian company in the lead-zinc smelting sector recently faced this challenge head-on within its critical pulverized coal preparation process. The solution? The integration of a high-performance LM Series Vertical Roller Mill from Shanghai Zenith Machinery Co., Ltd., a decision driven by the need for robust, automated, and environmentally conscious grinding technology.

The project's core requirement was a grinding system capable of handling the rigorous 24/7 operational demands of a smelting furnace support system. Coal ground to a precise fineness is essential for consistent combustion and heat generation within the smelting process. Zenith's LM Vertical Grinding Mill emerged as the ideal candidate, specifically engineered for such large-scale, continuous-running industrial applications. Its reputation for stable product quality and large capacity—offering a range from 3 to 340 T/H—provided the necessary foundation for ensuring an uninterrupted fuel supply to the furnace.

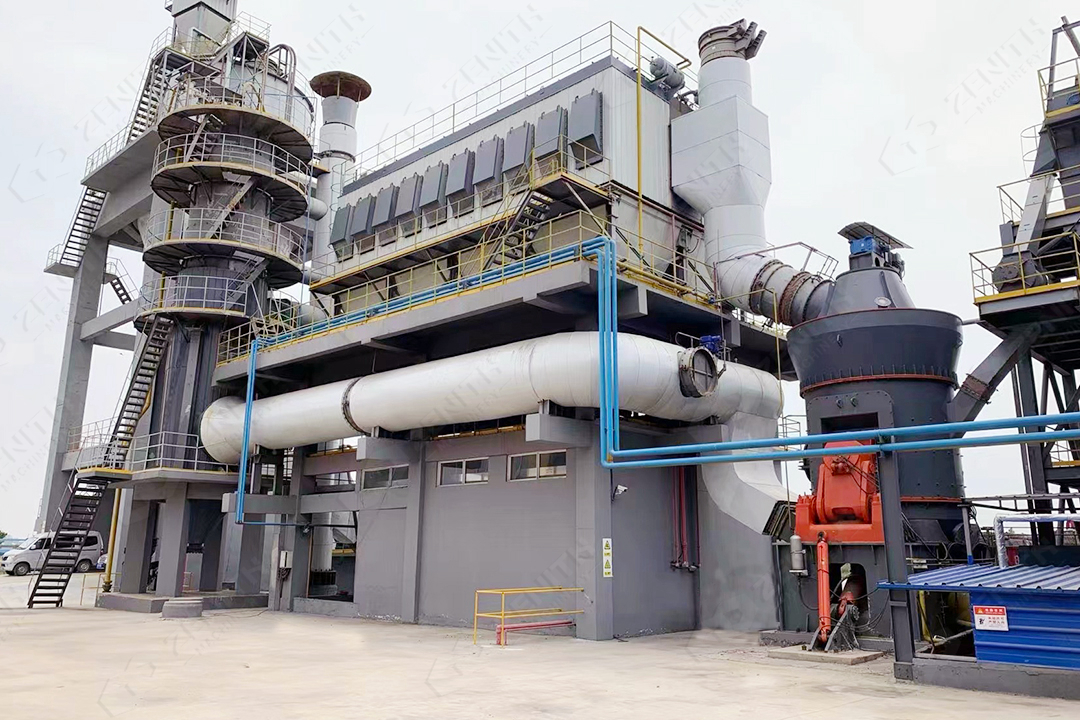

Beyond raw capacity, the LM mill's design philosophy aligns perfectly with modern industrial priorities. One of the most significant advantages realized by the Indian client was the reduction in comprehensive investment. The mill's compact, integrated design occupies approximately 50% of the space required by a traditional ball mill system. This not only saved valuable real estate within the plant layout but also significantly reduced costs associated with foundation and plant construction. Furthermore, the mill's high degree of automation allows for seamless remote or local control, minimizing labor costs and human error while enabling easy monitoring—a critical feature for maintaining consistent pulverized coal quality.

Environmental compliance and operational cleanliness were non-negotiable aspects of the project. Here, the LM Vertical Mill's sealed operation under negative pressure proved invaluable. This design characteristic ensures no dust spillage during the grinding process, contributing to a cleaner, safer workplace. Coupled with low vibration and noise levels, the installation supports the company's commitment to more eco-friendly production, aligning with global standards and local regulatory requirements.

The technical superiority of the LM mill is rooted in its efficient working principle. The main motor drives the grinding disc via a reducer. Coal feedstock (with an input size of 0-70mm) falls to the disc's center and is moved outward by centrifugal force, forming a uniform material bed. Here, it is crushed by rollers in a highly efficient inter-particle grinding action. The ground material is then carried by a hot air stream into an integrated powder separator. Coarse particles are returned for re-grinding, while fine powder meeting the target fineness (80-400 mesh) is efficiently collected as the final product. This closed-loop system guarantees precise control over the output, which is crucial for optimal furnace performance.

Shanghai Zenith's global expertise and certified quality provided additional assurance. With ISO, CE, and CU-TR certifications, along with a presence in over 180 countries, Zenith demonstrated a proven track record of supporting heavy industry worldwide. The successful deployment of the LM Vertical Mill in this Indian smelter is a testament to the machine's adaptability and performance under challenging conditions, reinforcing its status as a cornerstone equipment for large mineral, cement, and coal grinding plants.

Frequently Asked Questions (FAQs)

1. What is the primary advantage of an LM Vertical Mill over a traditional ball mill for coal grinding?
   The LM Vertical Mill offers significantly lower energy consumption (over 60% less than a ball mill of the same grade), a much smaller footprint (about 50% less area), higher automation, and dust-free operation under negative pressure, making it more efficient and environmentally friendly.
2. Can the LM Vertical Mill handle variations in coal feedstock size and hardness?
   Yes. The LM mill is designed with strong adaptability to materials. Its robust grinding principle involving a material bed and rollers allows it to effectively process feed sizes up to 70mm and accommodate variations in material properties.
3. How is the fineness of the pulverized coal controlled in the LM mill system?
   Fineness is precisely controlled by an integrated dynamic powder separator. The speed of the classifier rotor can be adjusted, allowing operators to easily set and maintain the desired product fineness, typically between 80 and 400 mesh, to meet specific combustion requirements.
4. What kind of after-sales support and certification does Zenith provide with its grinding mills?
   Zenith equipment comes with international quality certifications including ISO, EU CE, and Customs Union CU-TR. The company provides comprehensive technical support, installation guidance, and spare parts services through its global network covering over 180 countries and overseas offices in more than 30 nations.
5. Is the LM Vertical Mill suitable for 24/7 continuous operation?
   Absolutely. The LM series is specifically engineered for constant, round-the-clock running. Its stable performance, automated control, and durable construction make it an ideal choice for critical applications like smelting furnace support that require non-stop production.
6. How does the LM mill contribute to a cleaner plant environment?
   The entire grinding system is sealed and operates under negative pressure, preventing any dust from escaping into the workshop. Additionally, it is equipped with efficient pulse dust collectors, ensuring emissions meet strict national and international environmental protection standards.
