Diabase, a dark-colored, fine-grained igneous rock, presents unique challenges in mineral processing due to its hardness and abrasive nature. At Shanghai Zenith Machinery, we have developed specialized grinding equipment specifically engineered to handle tough materials like diabase efficiently and economically. Our grinding solutions transform raw diabase into valuable powders used across construction, agriculture, and industrial applications.

The fundamental working principle across our grinding machinery involves reducing particle size through mechanical forces while maintaining precise control over final product specifications. For diabase processing, this begins with properly crushed material entering the grinding chamber where various mechanisms—depending on the mill type—apply compressive, impact, or shear forces to break down the rock into finer particles.

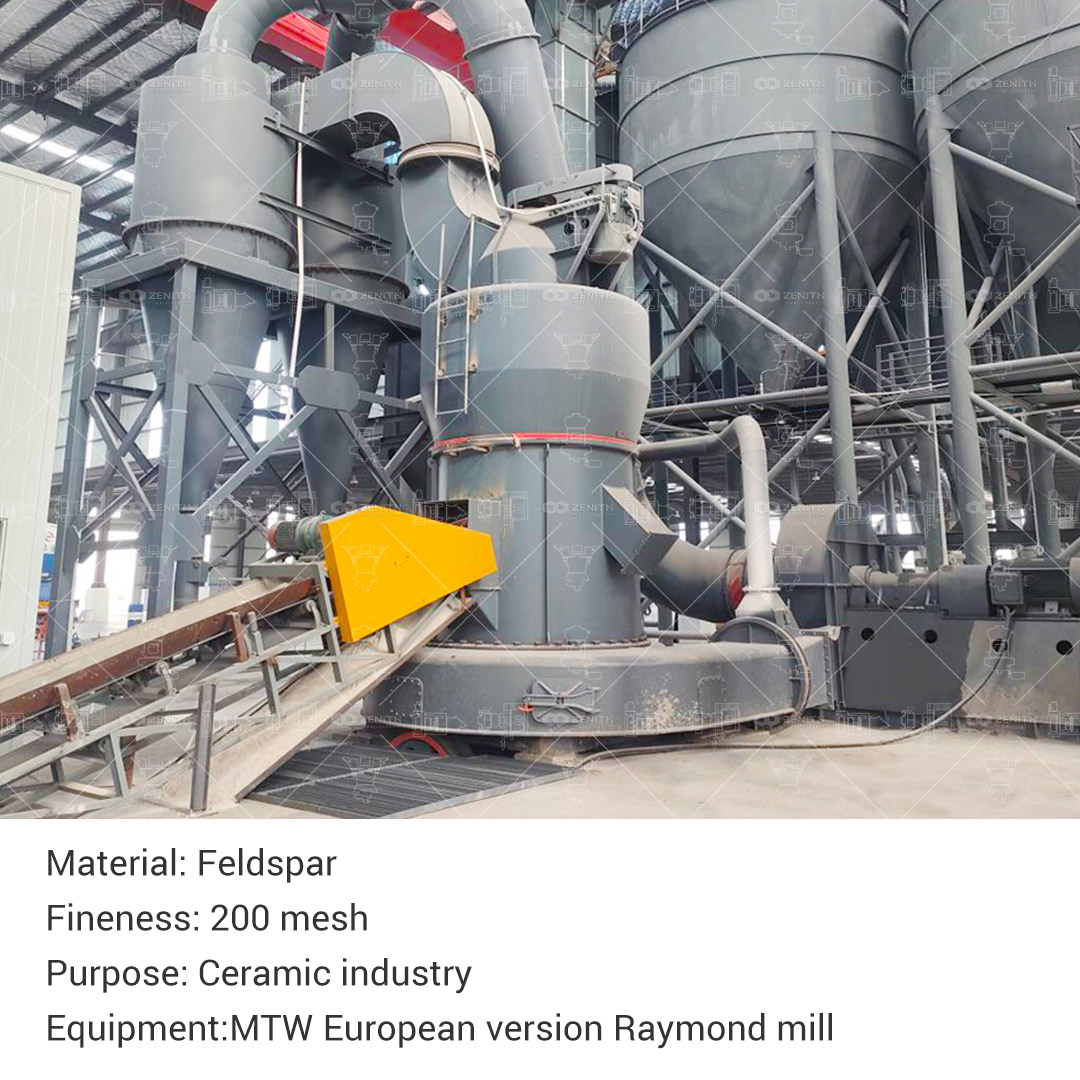

Our MTW European Trapezium Mill exemplifies this process beautifully. After initial crushing, qualified diabase materials are conveyed to the main grinding chamber via variable frequency belt feeders. Inside the chamber, grinding rollers rotate against a stationary ring, applying tremendous pressure to crush the material. The crushed particles are then transported by fan-generated airflow to the powder selector for classification. Here, an ingenious separation occurs: qualified fine powder proceeds to cyclone collectors as finished product, while coarse particles return to the grinding chamber for further processing. This closed-circuit system operates under carefully controlled positive and negative pressure conditions, ensuring maximum efficiency while meeting stringent environmental standards through integrated pulse dust collectors.

For operations requiring vertical integration and automation, our LM Vertical Grinding Mill offers distinct advantages in diabase processing. The main motor drives the grinding disc through a reducer assembly, while hot air enters the chamber to facilitate drying and material transport. Diabase material falls onto the center of the rotating disc and moves outward due to centrifugal force, passing under heavy grinding rollers that apply compressive force. What makes this system particularly effective for hard materials like diabase is the formation of a material bed that enables inter-particle crushing—a highly efficient grinding method where particles themselves become grinding media. The system's ability to handle input sizes up to 70mm makes it ideal for direct processing of crushed diabase without intermediate crushing stages.

When ultra-fine diabase powder is required—for applications demanding 325-3250 mesh fineness—our XZM Ultrafine Grinding Mill delivers exceptional performance. The working principle here involves a multi-stage classification system that ensures precise particle size control. Crushed diabase enters the main chamber and falls onto a high-speed turntable where grinding rollers crush it under centrifugal force. The resulting powder-air mixture enters an advanced classifier where rotating blades create precise airflow patterns; particles meeting size specifications proceed to collection systems, while oversized particles return for regrinding. This continuous classification and regrinding cycle, operating under negative pressure to prevent dust emissions, produces consistently fine diabase powders with 99% screening efficiency.

Energy efficiency represents a critical consideration in diabase grinding, given the material's hardness and the substantial power requirements of size reduction. Zenith's grinding machinery addresses this through multiple innovative features. The MTW and MTM series mills consume over 60% less energy than traditional ball mills of equivalent capacity, achieved through optimized grinding geometry, reduced mechanical losses, and efficient airflow designs. The high-efficiency impeller fans in these systems improve air induction efficiency from 62% to 85%, significantly reducing the power required for material transport and classification.

Environmental compliance is seamlessly integrated into the working principles of our diabase grinding equipment. All systems operate under controlled pressure conditions with comprehensive dust collection. The pulse dust removal systems capture fugitive particles, while negative pressure operation prevents material leakage. The LUM Ultrafine Vertical Grinding Mill exemplifies this approach with its completely sealed design that eliminates dust spillage while maintaining low vibration and noise levels—critical considerations for urban mining operations or plants located near residential areas.

Maintenance and operational simplicity form another cornerstone of our design philosophy. The modular impeller adjustment systems in our trapezium mills enable quick changes to product fineness without equipment modification. The reversible structure and hydraulic adjustment systems in our LUM vertical mills allow rapid replacement of wear parts—particularly valuable when processing abrasive materials like diabase. For the XZM series, the absence of rolling bearings and screws in the grinding chamber eliminates common failure points, while the VFD-controlled classifier enables precise fineness adjustment through simple control panel settings.

Across all our diabase grinding solutions, the working principles share common objectives: maximizing grinding efficiency, minimizing energy consumption, ensuring product consistency, and maintaining environmental compliance. Whether through the centrifugal bed compression of vertical mills, the roller-ring compression of trapezium mills, or the impact-classification systems of ultrafine mills, Zenith equipment transforms challenging diabase ore into precisely specified powders that drive industries worldwide.
