In today's industrial landscape, where operational efficiency and environmental responsibility are paramount, the strategic placement of grinding equipment has emerged as a critical consideration for forward-thinking operations. Among the most impactful developments is the outdoor installation of large vertical coal mills, a practice that not only optimizes space but delivers substantial energy savings and consumption reduction.

Shanghai Zenith Machinery Co., Ltd., a hi-tech engineering group specializing in industrial powder grinding equipment, has been at the forefront of this innovation. Our extensive research, development, and production capabilities have yielded grinding solutions that excel in performance while addressing the pressing needs for sustainability and cost-effectiveness.

The Zenith Advantage: Engineered for Outdoor Performance

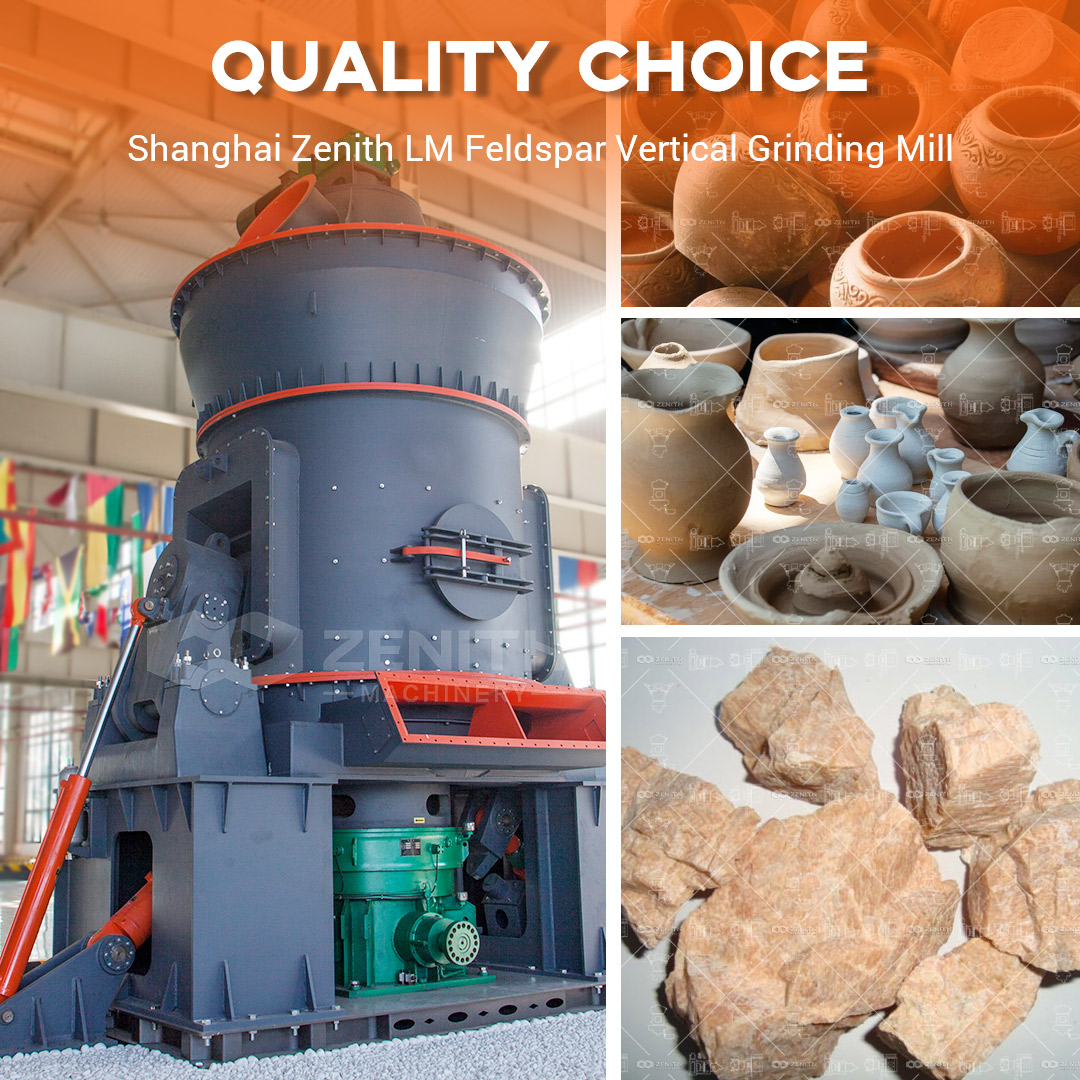

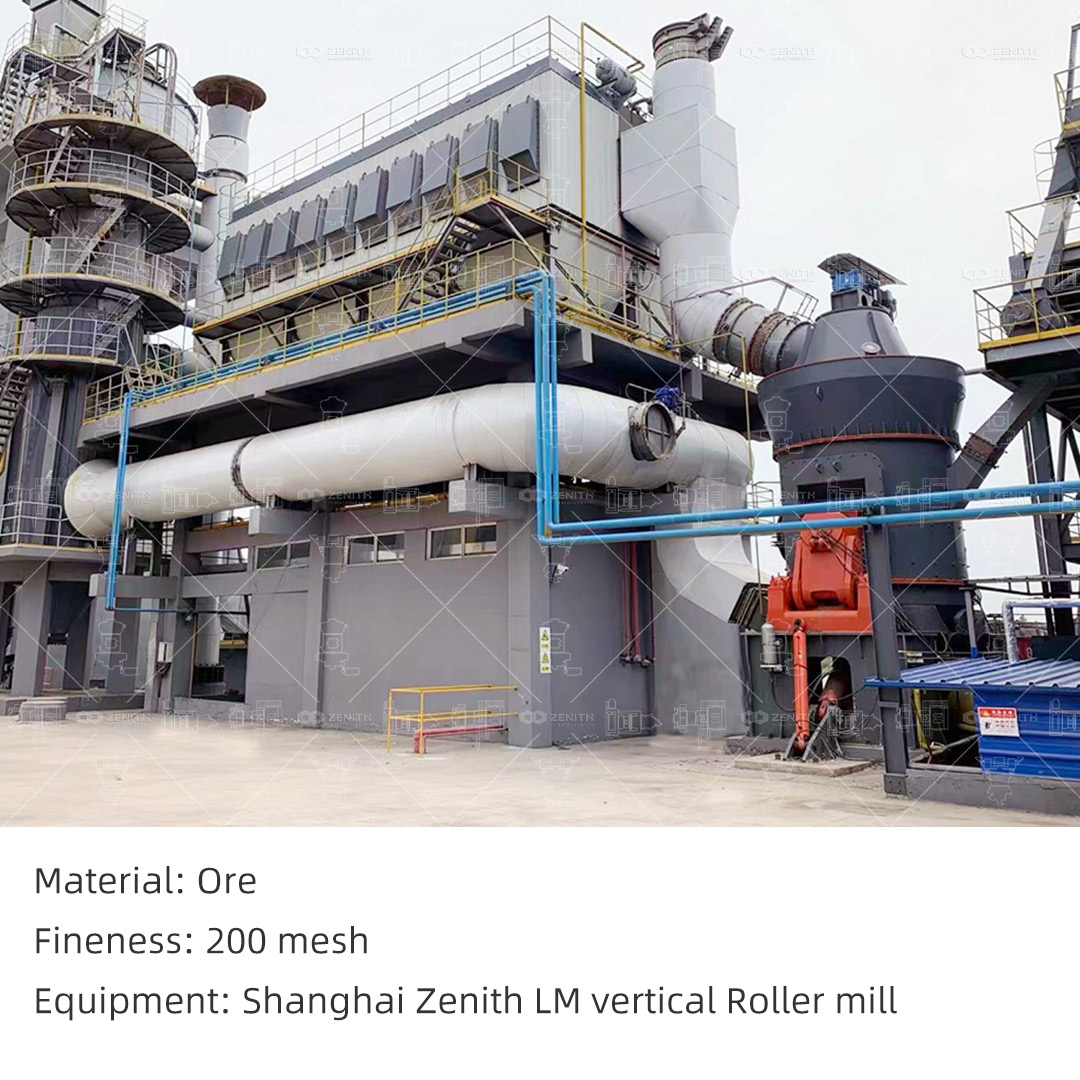

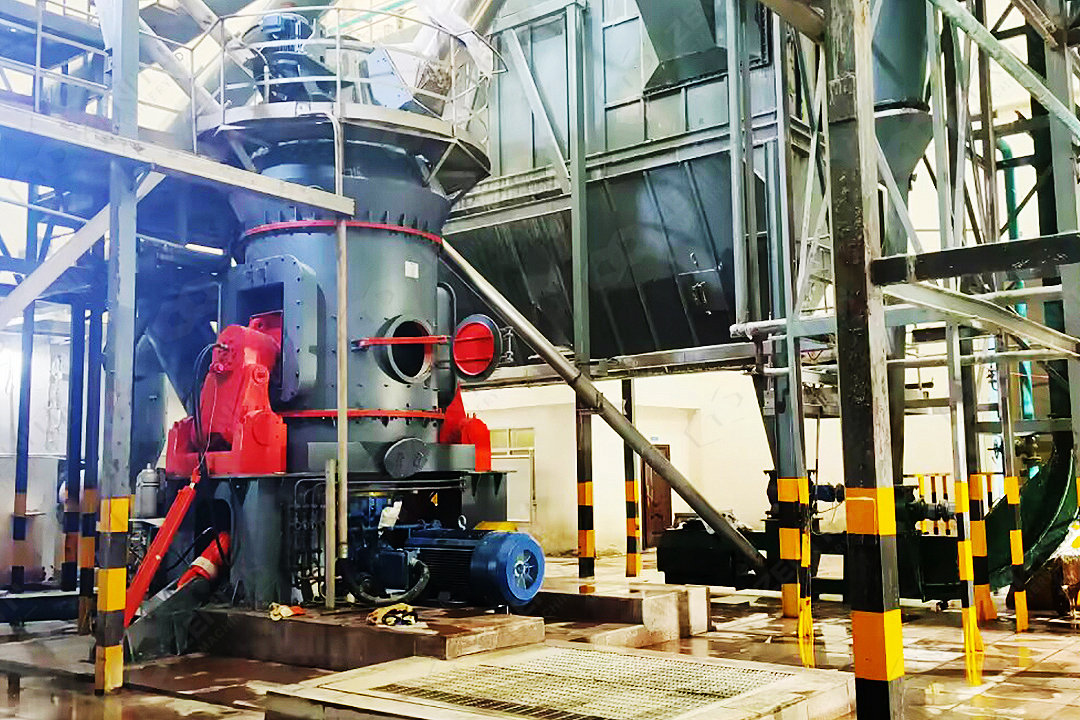

Our LM Series Vertical Roller Mills represent the pinnacle of grinding technology designed for robust outdoor operation. Unlike traditional ball mills that require extensive indoor facilities, these vertical mills adopt a compact integrated design that covers approximately 50% of the space required by conventional ball mill systems. This significant reduction in footprint translates directly to lower construction costs and greater flexibility in plant layout.

The LM Vertical Grinding Mill's capacity ranges from 3-340 T/H, handling input sizes up to 70mm and producing fine powder between 80-400 mesh. What makes these mills particularly suitable for outdoor installation is their sealed construction and operation under negative pressure, which prevents dust spillover and ensures environmental compliance regardless of weather conditions.

Substantial Energy Savings: The 60% Advantage

Energy consumption represents one of the most significant operational costs in grinding operations. Zenith's vertical mills address this challenge head-on, demonstrating energy consumption more than 60% lower than that of the same grade of ball mill under ideal working conditions. This remarkable efficiency stems from several innovative design features:

The grinding principle utilizes a bed of material between the rollers and the table, creating inter-particle comminution that requires less energy than the impact and attrition methods employed in traditional ball mills. Additionally, the high-efficiency impeller fan improves air induction efficiency from 62% to 85%, further reducing power requirements.

Comprehensive Investment Reduction

Outdoor installation of vertical coal mills delivers comprehensive investment savings across multiple dimensions. The elimination of expensive building structures represents just the beginning. The integrated production system from bulk material to finished powder minimizes material handling requirements and associated infrastructure costs.

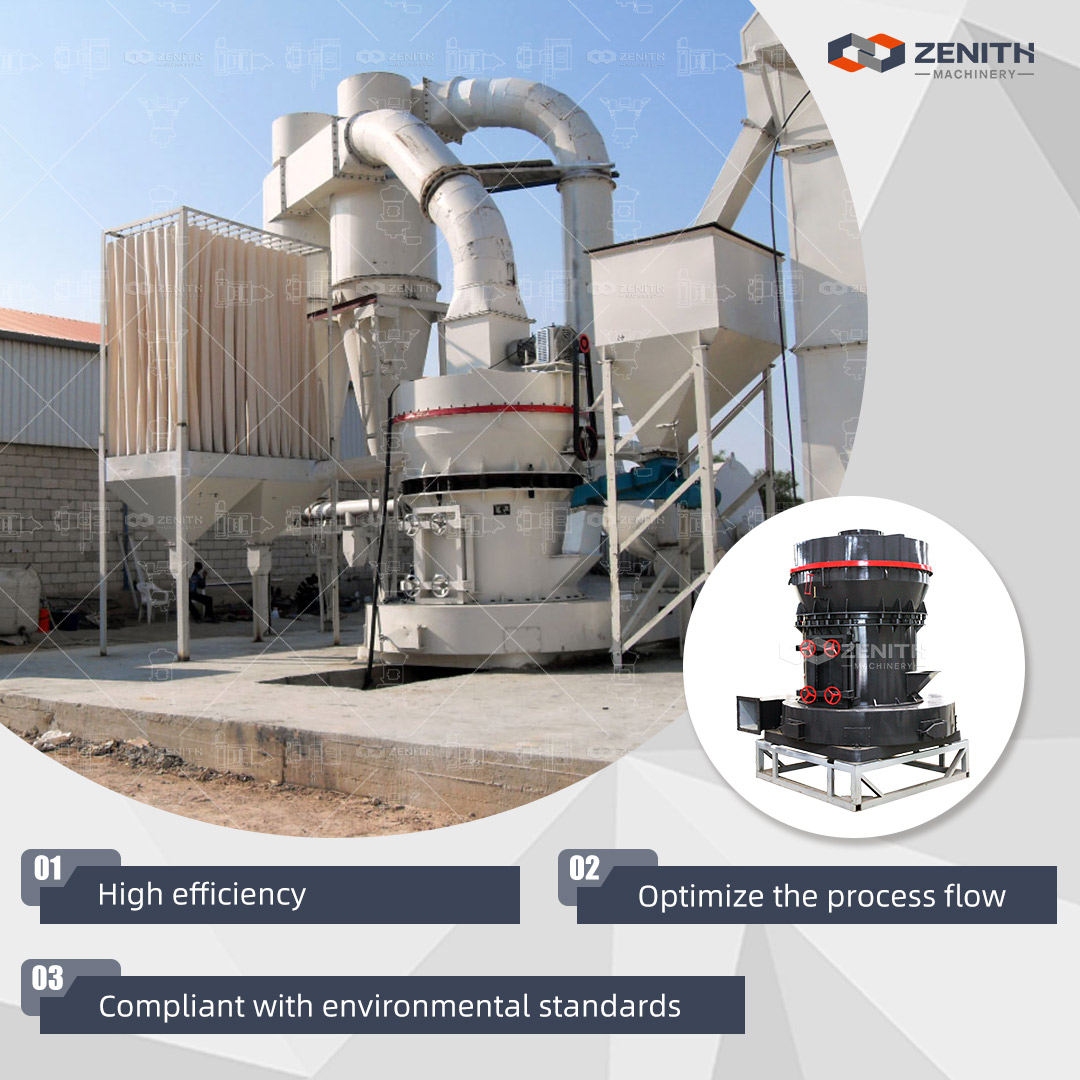

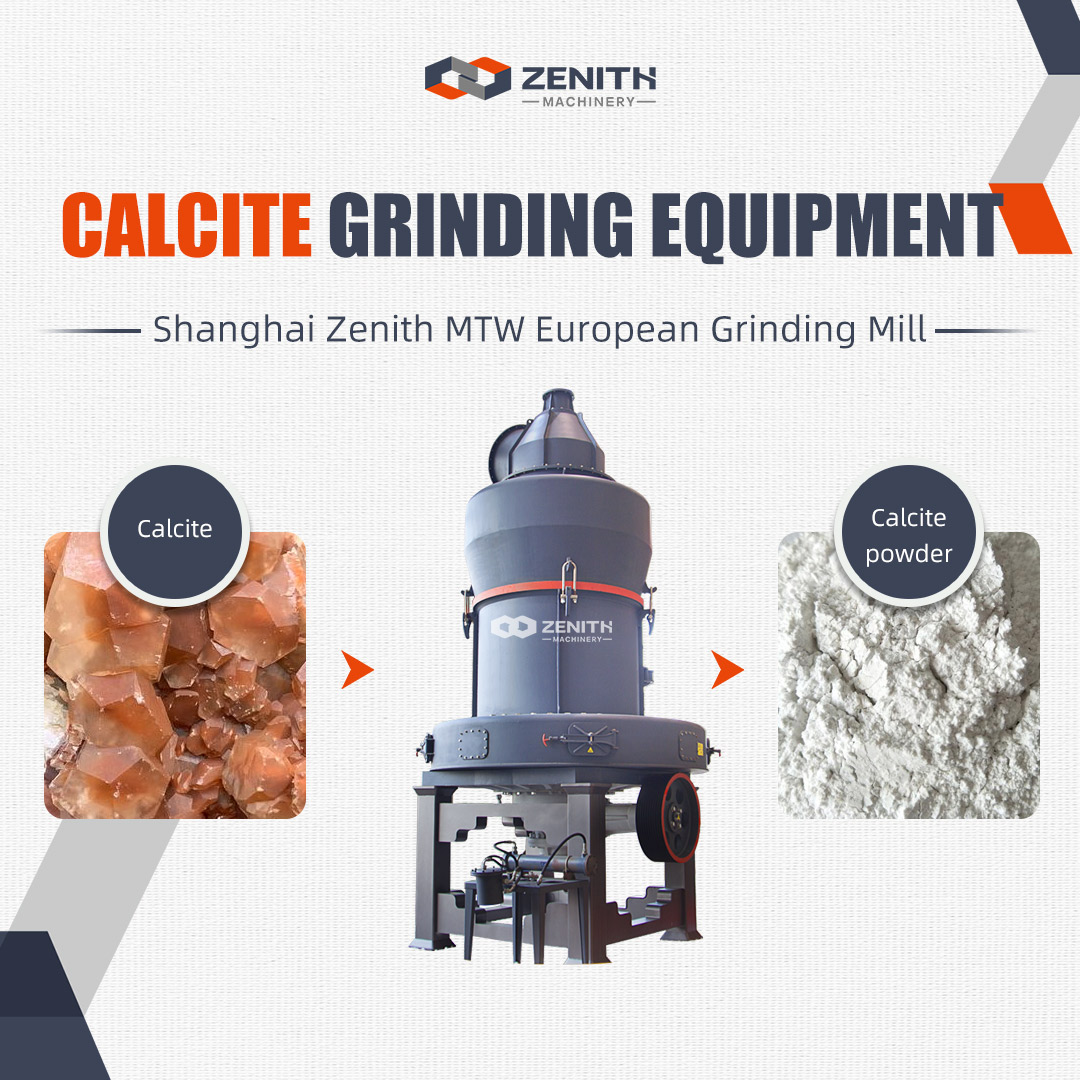

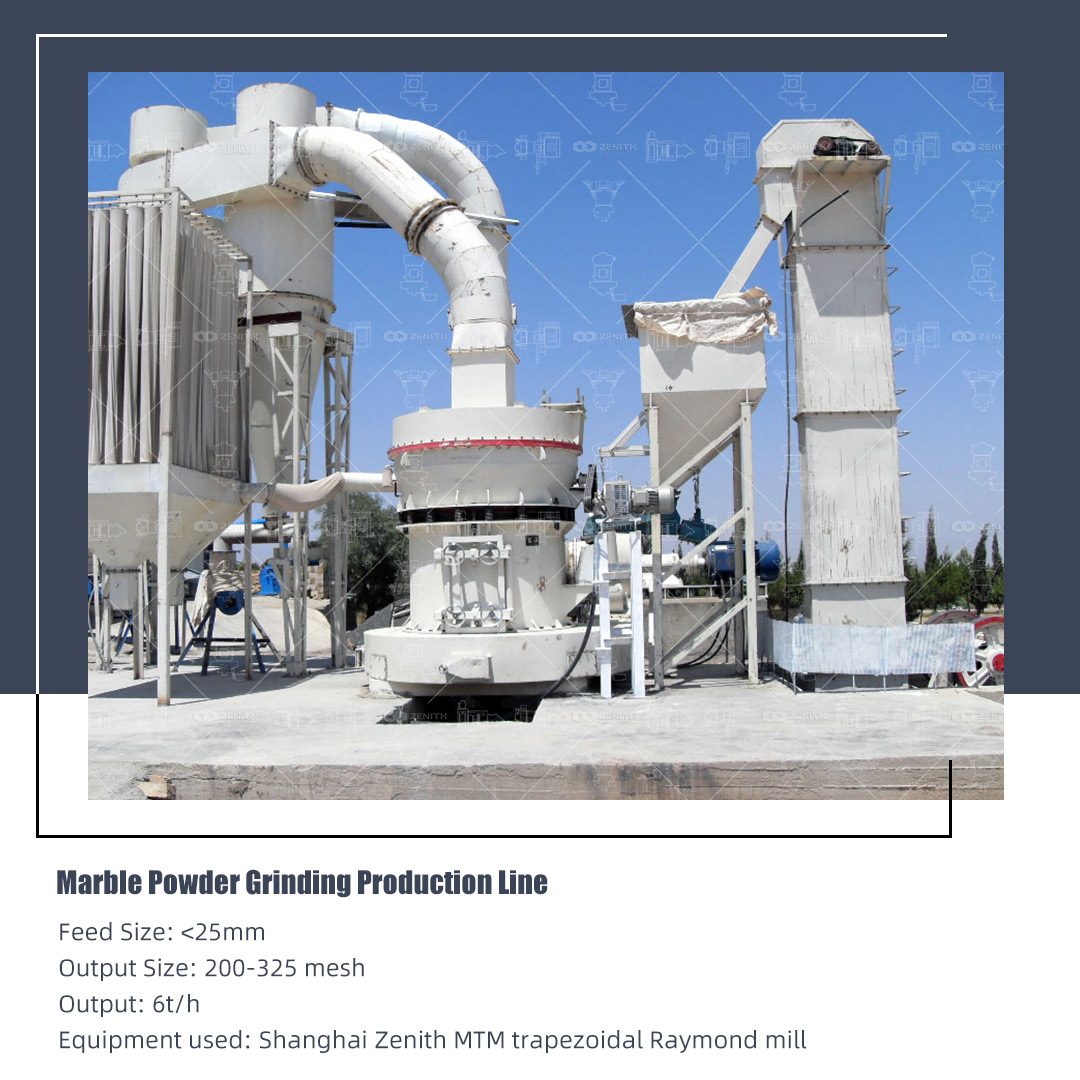

Our MTW and MTM European Trapezium Mills exemplify this approach, featuring complete production systems that require minimal investment in plant construction and foundation work. These mills maintain stable performance while producing fine powder between 80-400 mesh, with the largest models achieving capacities up to 50tph with reduced powder consumption.

Advanced Automation for Unmanned Operation

The high degree of automation in Zenith's vertical mills makes them ideally suited for outdoor installation with minimal supervision. The LM Vertical Grinding Mill comes equipped with an automatic control system that enables free switching between remote control and local operation. This capability allows for labor-free workshop operation and maintenance, further reducing operational costs.

This automated operation ensures 24-hour constant running capability, making these mills particularly valuable for applications requiring large capacity, consistent operation, and stable product quality, such as large mineral powder plants, cement plants, GGBS powder plants, and specialized coal grinding facilities.

Environmental Compliance in Outdoor Settings

Operating grinding equipment outdoors raises legitimate concerns about environmental impact, but Zenith's vertical mills are engineered to exceed environmental standards. The sealed design and negative pressure operation characteristic of our LM and LUM series mills ensure no dust spillover, while advanced noise reduction technologies maintain low operational sound levels.

The equipment comes standard with pulse dust collectors that meet national environmental protection standards, making them suitable for installation in diverse geographical locations without compromising environmental responsibility.

Adaptability to Various Materials and Conditions

Zenith's grinding solutions offer remarkable versatility in processing various materials under different environmental conditions. Beyond coal grinding, our equipment handles materials ranging from limestone and calcite to more specialized minerals, with output fineness adjustable from coarse 3mm powder to ultrafine 3250mesh specifications.

The adjustable output fineness feature, achieved through modular impeller adjustment devices, allows operators to produce products with different specifications simply by changing impellers, providing exceptional operational flexibility without requiring multiple specialized machines.

Global Implementation Success

With a marketing network covering more than 180 countries and regions across Asia, Africa, Europe, America and Oceania, and established overseas offices in more than 30 countries, Zenith has demonstrated the global applicability of outdoor vertical mill installation. Our equipment holds ISO international quality system certification, European Union CE certification and Customs Union CU-TR certification, ensuring compliance with international standards regardless of installation location.

The proven performance of these mills in diverse climatic conditions – from tropical environments to temperate zones – validates their robustness and reliability for outdoor operation.

Future-Proof Investment

Investing in outdoor-installed vertical coal mills represents not just immediate operational benefits but long-term strategic advantage. The energy savings, reduced consumption, lower maintenance requirements, and environmental compliance position operations for sustainable profitability in an increasingly regulated industrial landscape.

As energy costs continue to rise and environmental regulations tighten, the comprehensive benefits of Zenith's vertical grinding technology become increasingly valuable. The outdoor installation capability further enhances this value proposition by reducing initial capital expenditure while maintaining – and often improving – operational efficiency.

Frequently Asked Questions

What are the primary advantages of installing vertical coal mills outdoors?

Outdoor installation significantly reduces construction costs by eliminating the need for expensive building structures, provides better ventilation for heat dissipation, allows for easier expansion, and reduces the plant's overall footprint. The compact design of vertical mills makes them particularly suitable for outdoor installation.

How does the energy consumption of vertical mills compare to traditional ball mills?

Zenith's vertical mills demonstrate energy consumption more than 60% lower than that of the same grade of ball mill under ideal working conditions. This efficiency stems from advanced grinding principles, high-efficiency impeller fans, and optimized system design.

Can vertical mills operate effectively in extreme weather conditions?

Yes, Zenith's vertical mills are engineered for robust performance in diverse environmental conditions. The sealed construction, negative pressure operation, and weather-resistant components ensure reliable operation in various climates, though specific environmental adaptations may be recommended for extreme conditions.

What maintenance requirements are associated with outdoor-installed vertical mills?

Maintenance requirements are significantly reduced compared to traditional mills. The automated control systems enable remote monitoring, and features like reversible grinding rollers and hydraulic adjustment systems facilitate quick maintenance. Regular inspections and preventive maintenance are recommended to ensure optimal performance.

How is environmental compliance maintained with outdoor installation?

The mills operate under negative pressure with sealed construction, preventing dust emissions. Integrated pulse dust collectors capture fine particles, and low-noise operation minimizes acoustic impact. These features ensure compliance with environmental standards in outdoor settings.

What range of materials can be processed in these vertical mills?

Beyond coal, Zenith's vertical mills process various materials including limestone, calcite, dolomite, barite, talc, and other non-metallic minerals. The output fineness can be adjusted from 80-400 mesh for standard vertical mills up to 325-2500 mesh for ultrafine vertical grinding mills.

How does the automation system function in outdoor installations?

The automated control systems enable both local and remote operation, with continuous monitoring of operational parameters. The systems can automatically adjust feeding rates, grinding pressure, and classifier speed to maintain optimal performance, and can alert operators to any required maintenance or adjustments.
